| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,380 pcs
|
1380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Supply Voltage |

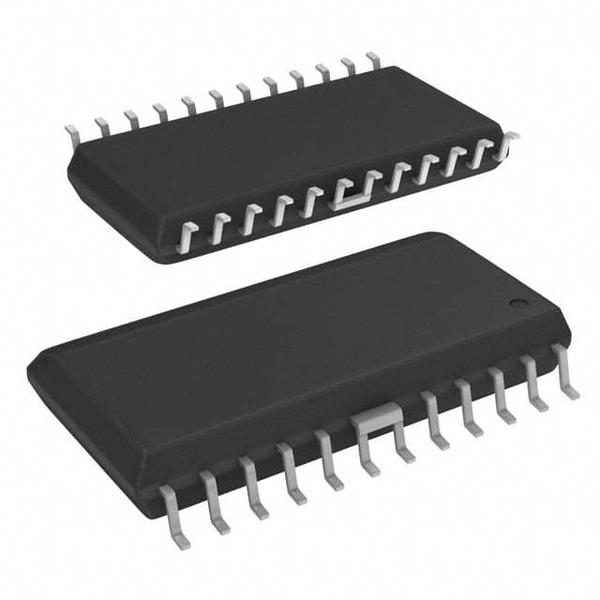

The Allegro Microsystems A2918SWH is a dual full-bridge PWM motor driver capable of driving both windings of a bipolar stepper motor or bidirectionally controlling two DC motors. It supports a motor supply voltage of up to 45V and can deliver a continuous output current of ±1.5A. The device includes internal pulse-width modulation (PWM) control for precise output current regulation.
Key features include internal clamp and flyback diodes for protection against inductive transients, and internal thermal shutdown circuitry to prevent overheating. Internally generated delays prevent cross-over currents during direction switching. The A2918SWH is supplied in an 18-lead power-tab package and is available for operation from -40°C to +85°C.
This motor driver is suitable for applications requiring control of bipolar stepper motors or DC motors where precise current control and protection features are necessary. Its design simplifies power-up sequencing and provides robust operation.
Note: This product is discontinued and for reference only. Use UDN2917EB for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The A2918SWH motor driver can sustain up to 45 V.
The continuous output current for the A2918SWH is ±1.5 A.
The A2918SWH operates from -40 °C to +85 °C.
The A2918SWH is supplied in an 18-lead power-tab package.
The A2918SWH is designed to drive both windings of a bipolar stepper motor or bidirectionally control two DC motors.
