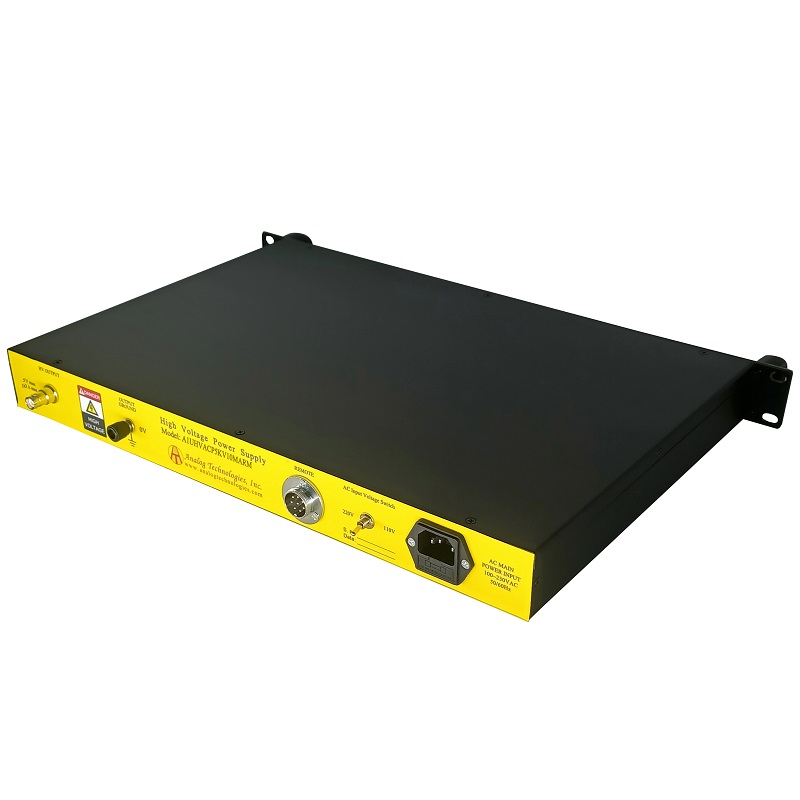

The Analog Technologies A1UHVACP5KV10MARM is a high-performance AC-DC high voltage power supply designed for demanding industrial, scientific, and research applications. It converts standard AC mains voltage into a stable high DC voltage output, adjustable up to 5 kV, with a precisely regulated output current of 10 mA.
This power supply features continuous linear voltage adjustment with low time and temperature drift, ensuring high accuracy and stability. Its modular internal design enhances reliability and offers flexibility for system integration. For operational safety and stability, it includes built-in protection mechanisms against overcurrent, arc discharge, and short circuits.
The unit is housed in an industrial-grade 19-inch rack mount form factor for easy installation. A front-panel digital display provides real-time monitoring of output voltage and current, facilitating convenient operation and control. Typical applications include ion beam injection, semiconductor processing, capacitor charging, high voltage insulation testing, and scientific research apparatuses.
Key specifications include an input voltage range of 100-230 VAC, an efficiency of 75%, and an operating temperature range of 0°C to 50°C. The dimensions are 482.6mm x 350.0mm x 43.9mm.
100-230 VAC.
0°C to 50°C.
Rack mount, enclosed.
Up to 5 kV DC, adjustable.
10 mA.
Overcurrent, arc, and short-circuit protection.
75%.
