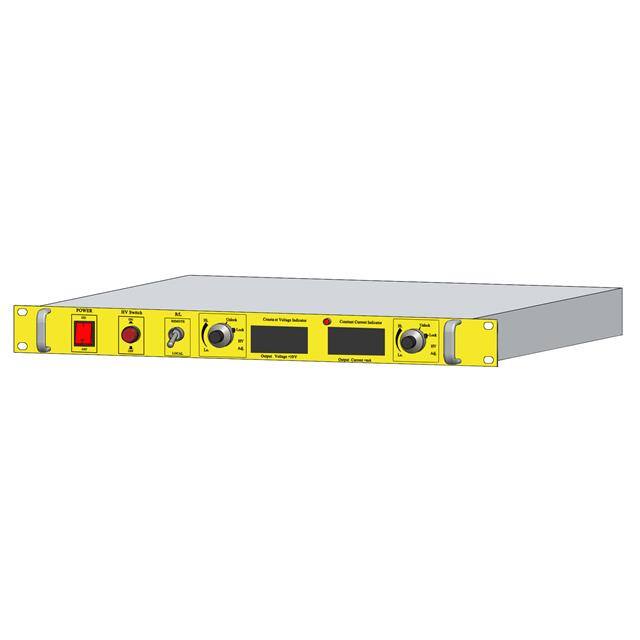

A1UHVACP1KV50MARM

The Analog Technologies A1UHVACP1KV50MARM is a high voltage AC-DC converter designed for achieving AC-DC conversion from AC voltage to high DC voltage. This series high voltage power supply is rack-mounted, and is mainly used in ion beam injection, semiconductor technology, electron beam welding, capacitor charging, high power radio frequency transmitter, accelerator, CW laser, high voltage insulation test, lithography technology, X-ray system, electrostatic applications, scientific experiments, and industrial applications.

This power supply offers high stability, reliability, and accuracy of output voltage regulation, with a continuously adjustable output voltage and low time and temperature drift. It adopts a modular design with protection against overvoltage, overcurrent, and arcing. The control interface uses an industrial interface with an industrial design from circuit schematic to the overall structure. It features high integration and high detection accuracy, with functions such as start-up soft-start and control, making it convenient for control and easy to operate.

Key specifications include an input voltage range of 100 to 230 VAC, an output current of 50 mA, and an efficiency of 75%. The operating temperature range is 0°C to 50°C. The unit is enclosed and designed for rack mounting, with dimensions of 482.6mm x 350.0mm x 43.9mm. It has a single output and features adjustable output capabilities.
