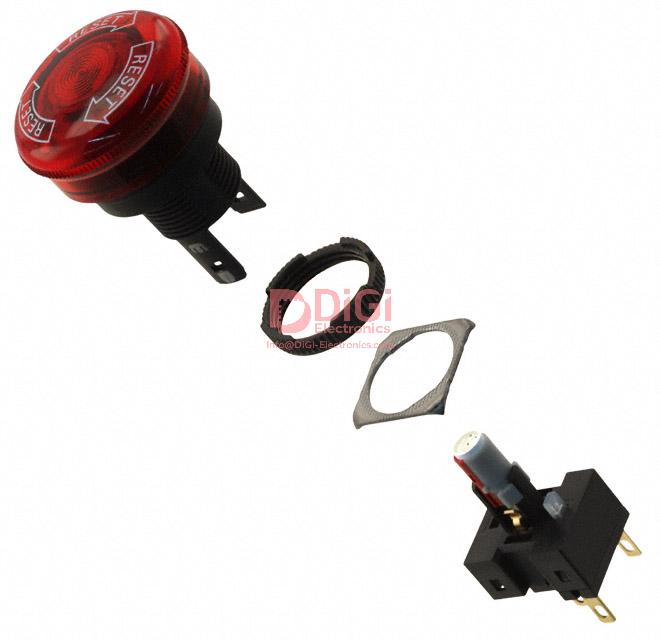

A165E-LS-24D-01 The Omron A165E-LS-24D-01 is a push button switch with a SPST-NC circuit. It is rated for 5A AC / 3A DC and 125V AC / 30V DC.
Mfr Part #:

A165E-LS-24D-01

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron A165E-LS-24D-01 is a push button switch with a SPST-NC circuit. It is rated for 5A AC / 3A DC and 125V AC / 30V DC.
✓ Total Stock: 24 pcs
$ Price Range: $0.75

A165E-LS-24D-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A165E-LS-24D-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Circuit
Current Rating (Amps)
Features
Illumination Voltage (Nominal)
Industrial Grade
Ingress Protection
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Reset Operation
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

A165E-LS-24D-01 Description

Short technical summary and product information.

The Omron A165E-LS-24D-01 is a push button switch designed for panel mounting with front reset operation. It features a Single Pole Single Throw Normally Closed (SPST-NC) circuit and an On-Off switch function.



This illuminated red switch has electrical ratings of 5A at 125V AC and 3A at 30V DC. It requires a 24VDC illumination voltage. The switch is designed for a panel cutout diameter of 16.00mm and offers termination via solder or 0.110" (2.8mm) quick connect.



With an Ingress Protection rating of IP65, it is dust-tight and water-resistant. The operating temperature range is from -10°C to 55°C. The switch is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.

A165E-LS-24D-01 Quick Information

Product Type: Push Button Switch
Series: A165E
Canonical Name: Omron A165E-LS-24D-01 Push Button Switch
Subcategory: Emergency Stop Switches

A165E-LS-24D-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A165E-LS-24D-01 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

A165E-LS-24D-01 Features

  • SPST-NC circuit for reliable switching.
  • Rated for 5A AC and 3A DC operation.
  • 125V AC and 30V DC voltage ratings.
  • Illuminated red for visual indication.
  • IP65 dust-tight and water-resistant.

A165E-LS-24D-01 Applications

  • Ideal for emergency stop functions.
  • Suitable for industrial control panels.
  • Used in automation equipment.
  • Panel mount applications.

A165E-LS-24D-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Omron A165E-LS-24D-01 switch?

The switch has a current rating of 5A for AC and 3A for DC.

What are the voltage ratings for the A165E-LS-24D-01 push button switch?

The voltage ratings are 125V AC and 30V DC.

What is the operating temperature range for this Omron switch?

The operating temperature range is -10°C to 55°C.

What is the ingress protection rating of the A165E-LS-24D-01?

The ingress protection rating is IP65, meaning it is dust-tight and water-resistant.

What type of circuit does the A165E-LS-24D-01 switch use?

It uses a SPST-NC (Single Pole Single Throw Normally Closed) circuit.

How is the A165E-LS-24D-01 switch mounted?

It is designed for panel mount with front reset operation.

What is the illumination voltage for this switch?

The nominal illumination voltage is 24VDC.
