A1210ELHLT-T The Allegro Microsystems A1210ELHLT-T is a magnetic switch utilizing Hall effect technology. It functions as a latch with an open drain output.
Mfr Part #:

A1210ELHLT-T

Available from 1 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro Microsystems A1210ELHLT-T is a magnetic switch utilizing Hall effect technology. It functions as a latch with an open drain output.
✓ Total Stock: 12,000 pcs
$ Price Range: $1.50

A1210ELHLT-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A1210ELHLT-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Mounting Type
Operating Temperature
Output Type
Polarization
Sensing Range
Supplier Device Package
Tape & Reel
Technology
Test Condition
Voltage
View Similar Products (0)

A1210ELHLT-T Description

Short technical summary and product information.

This Allegro Microsystems A1210ELHLT-T is a magnetic sensor switch designed with Hall effect technology. It operates as a latching device, providing an open drain output.



The sensor is specified for an operating temperature range of -40°C to 85°C (TA) and requires a voltage input between 3.8V and 24V. It features a sensing range of 15mT for tripping and -15mT for releasing, with a current consumption of 7.5mA. The device is designed to detect the South Pole of a magnet.

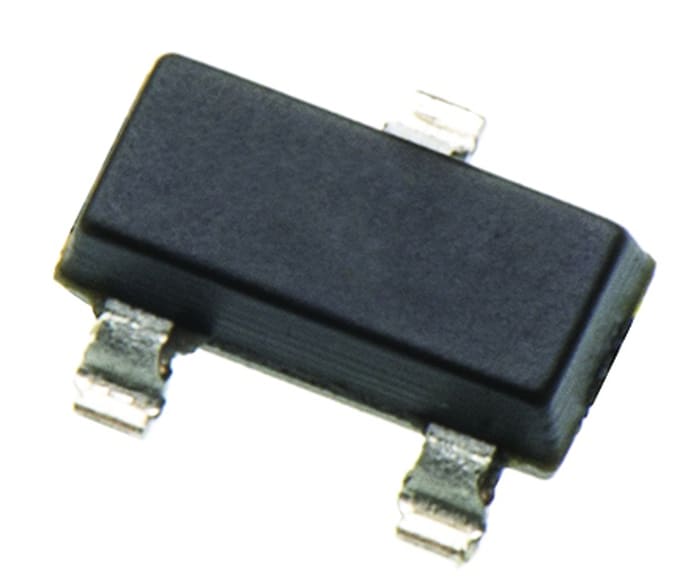

Packaged in a SOT-23W surface mount configuration, this component is suitable for various electronic assemblies. Its RoHS3 compliance indicates adherence to environmental standards for hazardous substances.

A1210ELHLT-T Quick Information

Product Type: Magnetic Sensor Switch
Canonical Name: Allegro Microsystems A1210ELHLT-T Hall Effect Latch
Subcategory: Latch

A1210ELHLT-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A1210ELHLT-T Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

A1210ELHLT-T Features

  • Hall effect latching magnetic switch.
  • Operates from 3.8V to 24V.
  • Open drain output.
  • SOT-23W surface mount package.
  • South pole detection.

A1210ELHLT-T Applications

  • Used in magnetic switch applications.
  • Suitable for solid-state sensor systems.
  • Ideal for latch-based magnetic detection.
  • Applicable in industrial automation sensors.
  • Suitable for electronic security systems.

A1210ELHLT-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to 85°C (TA)

What type of technology does this magnetic switch use?

Hall Effect

What is the output type of this device?

Open Drain

What is the function of this magnetic switch?

Latch

What is the operating voltage range?

3.8V to 24V

What is the sensing range?

15mT Trip, -15mT Release

What is the current consumption?

7.5mA
