A1171EEWLT-P The Allegro Microsystems A1171EEWLT-P is a Hall Effect switch with a supply voltage range of 1.65V to 3.5V. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

A1171EEWLT-P

Available from 1 distributors
Mfr Name: Allegro Microsystems
Allegro Microsystems
The Allegro Microsystems A1171EEWLT-P is a Hall Effect switch with a supply voltage range of 1.65V to 3.5V. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 9,000 pcs
$ Price Range: $1.50

A1171EEWLT-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A1171EEWLT-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Function
Mounting Type
Operating Temperature
Output Type
Polarization
Sensing Range
Supplier Device Package
Supplier Package
Technology
Test Condition
Voltage
View Similar Products (0)

A1171EEWLT-P Description

Short technical summary and product information.

The Allegro Microsystems A1171EEWLT-P is a Hall Effect switch designed for various sensing applications. It operates omnipolar and unipolar, offering flexibility in detection. The device features a programmable function and a Push-Pull output type.



Key electrical specifications include a supply voltage range of 1.65V to 3.5V and a current consumption of 2mA. The sensing range is specified as ±5.5mT Trip and ±0.6mT Release. The operating temperature for this component is -40°C to 85°C (TA).

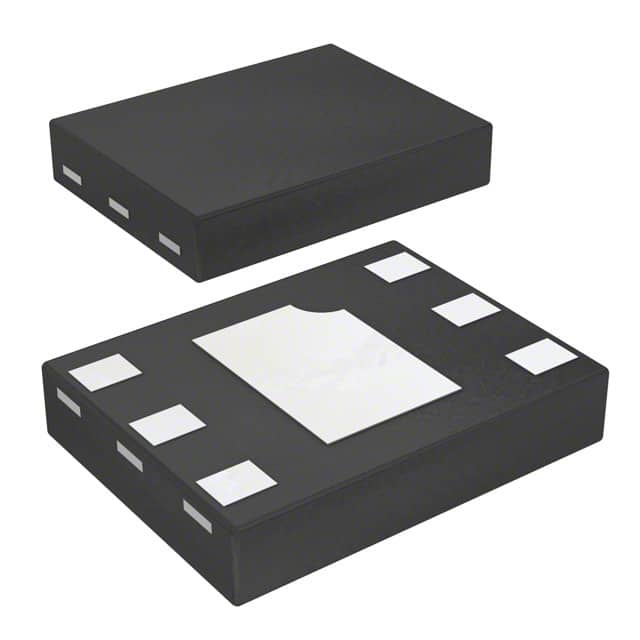

Packaged in a 6-DFN/MLP (1.5x2) format, the A1171EEWLT-P is designed for surface mounting. The supplier package is listed as 6-XFDFN Exposed Pad. This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

A1171EEWLT-P Quick Information

Product Type: Hall Effect Switch
Canonical Name: Allegro Microsystems A1171EEWLT-P Hall Effect Switch
Subcategory: Magnetic Sensors - Switches (Solid State)

A1171EEWLT-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A1171EEWLT-P Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

A1171EEWLT-P Features

  • Omnipolar and unipolar Hall Effect switch.
  • Programmable function for design flexibility.
  • 1.65V to 3.5V operating supply voltage.
  • Surface mountable 6-DFN/MLP package.
  • -40°C to 85°C operating temperature range.

A1171EEWLT-P Applications

  • Position sensing applications.
  • Lid and door detection.
  • Speed and direction sensing.
  • Proximity detection systems.

A1171EEWLT-P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the A1171EEWLT-P?

The operating voltage range is 1.65V to 3.5V.

What is the operating temperature range for this Hall Effect switch?

The operating temperature range is -40°C to 85°C (TA).

What type of output does the A1171EEWLT-P provide?

It provides a Push-Pull output type.

What is the package type for the A1171EEWLT-P?

The package is 6-DFN/MLP with an exposed pad.

Is the A1171EEWLT-P RoHS compliant?

Yes, it is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for the A1171EEWLT-P?

The Moisture Sensitivity Level is 1 Unlimited.
