Mfr Part #:

A11-B0-24-630-111-E

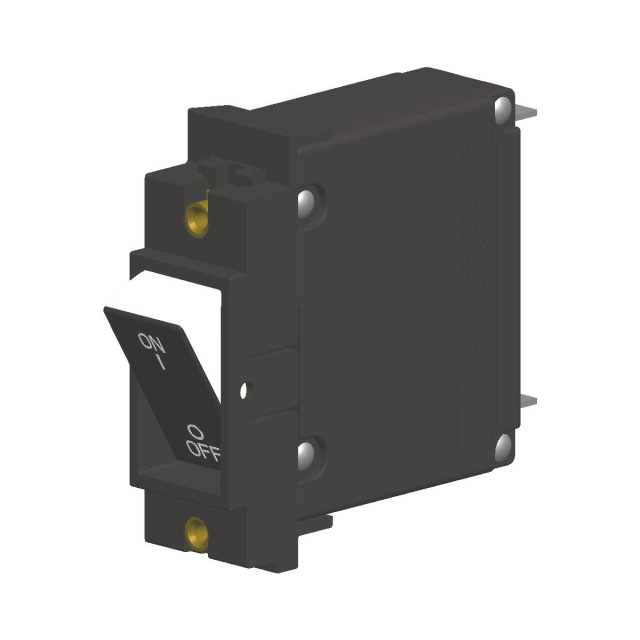

The Littelfuse Inc. A11-B0-24-630-111-E is a 1-pole hydraulic-magnetic circuit breaker with a 30A current rating and 250V voltage rating. It features a rocker actuator and panel mount.

Stock on Request

A11-B0-24-630-111-E Description

Short technical summary and product information.

This A-Series hydraulic-magnetic circuit breaker from Littelfuse Inc. is designed for reliable circuit protection in demanding OEM environments. It features a 30A current rating and a 250V voltage rating across a single pole.

The breaker utilizes a hydraulic delay mechanism for its trip time, offering medium trip time characteristics suitable for various applications. The actuator type is a two-color flat Visi-Rocker, providing clear status indication. It is designed for panel mounting with a threaded insert.

Key specifications include a 30A current rating and a 250V voltage rating. The breaker is RoHS3 compliant and has an MSL of 1. The termination style is a push-on 0.250 tab (Q.C.).

This component is part of the A-Series product line, known for its rugged and reliable performance. It is suitable for applications requiring precise overcurrent protection.

A11-B0-24-630-111-E Quick Information

Product Type: Circuit Breaker

Series: A-Series

Canonical Name: A-Series Hydraulic-Magnetic Circuit Breaker

Subcategory: Hydraulic-Magnetic Circuit Breaker

A11-B0-24-630-111-E Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

A11-B0-24-630-111-E Features

30A current rating for robust protection.
250V voltage rating suitable for many applications.
Single pole design for simpler circuits.
Hydraulic magnetic trip mechanism.
Panel mount with threaded insert.

A11-B0-24-630-111-E Applications

Ideal for industrial control panels.
Suitable for power distribution units.
Used in machinery and equipment.
Applicable in transportation systems.

A11-B0-24-630-111-E FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the A11-B0-24-630-111-E circuit breaker?

The current rating is 30A.

What is the voltage rating for this circuit breaker?

The voltage rating is 250V.

How many poles does the A11-B0-24-630-111-E have?

This circuit breaker has 1 pole.

What type of actuator does this circuit breaker use?

It uses a rocker actuator.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

Is the A11-B0-24-630-111-E RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.

Category	Circuit Breakers
Manufacturer Name	Littelfuse Inc.
Actuator Type	Two Color Flat Visi-Rocker
Approval Agency	CCC, CSA, TUV, UL
Breaker Type	Magnetic (Hydraulic Delay)
Current Rating	30A
Current Rating (Amps)	30A
Illumination	None
Mounting Type	Panel Mount
Number of Poles	1
Termination	Push-On 0.250 Tab (Q.C.)
Voltage Rating	250V
