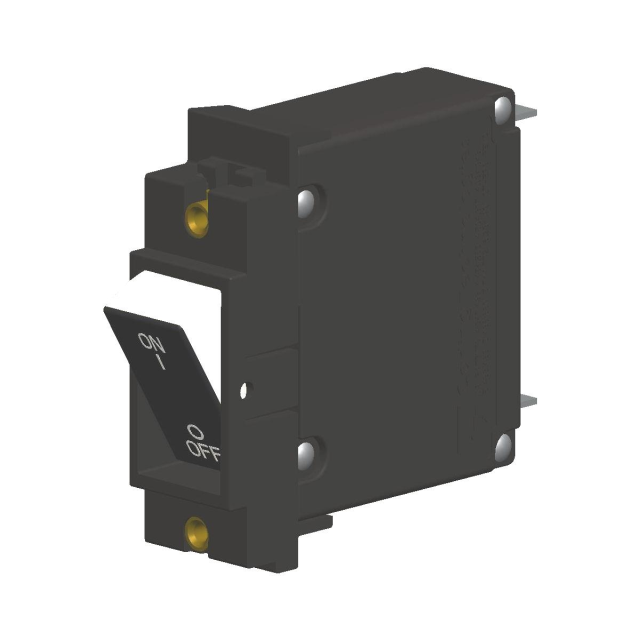

The Littelfuse Inc. A11-B0-24-615-111-E is an A-Series hydraulic magnetic circuit breaker designed for demanding OEM environments. This single-pole breaker features a 15A current rating and a 250V voltage rating.
Key specifications include a medium trip time delay suitable for 50/60Hz operation. The actuator type is a Two Color Flat Visi-Rocker, and illumination is non-illuminated. Mounting is achieved via a panel mount configuration with a threaded insert, and termination is via 0.250 Tab (Q.C.) push-on connectors.
Agency approvals include UL 1077 Recognized, CSA Accepted, and TUV Certified to IEC/EN 60934, ensuring compliance with various safety standards. This circuit breaker is suitable for applications requiring reliable overcurrent protection.
15 A.
250 V.
1.
Magnetic (Hydraulic Delay).
Two Color Flat Visi-Rocker.
Panel Mount with a 6-32 x 0.195 inch standard rocker bezel threaded insert.
UL 1077 Recognized, CSA Accepted, and TUV Certified to IEC/EN 60934.
