| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,865 pcs
|
1865 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| VSWR | |
| Weight |

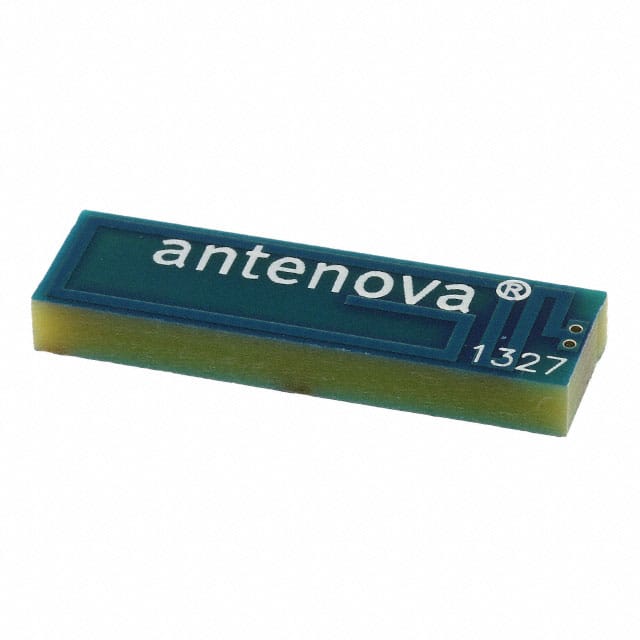

The Antenova A10340 is a Calvus series penta-band SMD antenna designed for efficient operation across multiple frequency bands, including GSM850/900/1800/1900 and WCDMA.
This antenna is intended for Surface Mount Device (SMD) integration and is supplied on a tape reel for automated assembly. It utilizes a ground plane for optimal radiation and includes a matching circuit for performance optimization across its specified frequency ranges of 824MHz-960MHz and 1710MHz-2170MHz. The antenna achieves a typical peak gain of 1.7 dBi at 862 MHz and 3.0 dBi at 1848 MHz, with an average efficiency of 66% in the lower band and 69% in the upper band.
Key electrical characteristics include a maximum VSWR of 3:1 and a return loss of -6dB. The operating temperature range is -40°C to +85°C. Its compact dimensions of 27 x 8 x 3.2 mm make it suitable for space-constrained designs.
Applications for the A10340 include femto/pico base stations, vehicle tracking, machine-to-machine communication, and remote monitoring systems requiring reliable cellular connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The antenna supports GSM850, E-GSM900, GSM1800, GSM1900, and WCDMA frequency bands.
The typical peak gain is 1.7 dBi at 862 MHz and 3.0 dBi at 1848 MHz.
The dimensions are 27 x 8 x 3.2 mm.
The operating temperature range is -40°C to +85°C.
The antenna is designed for surface mount (SMD) integration.
