| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Polarization | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| VSWR | |
| Weight |

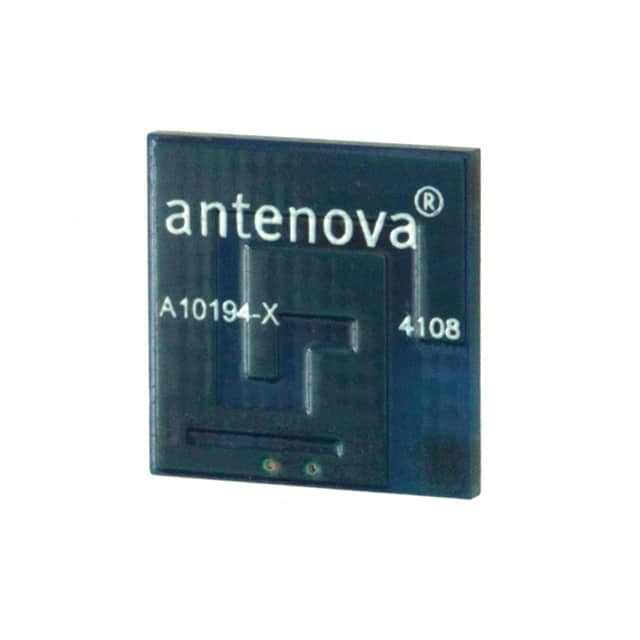

The Antenova A10194, also known as Mixtus, is a dual-band Wi-Fi antenna designed for seamless integration into devices operating in the 2.4 GHz and 5 GHz frequency bands. It supports standards such as 802.11a/b/g/j/n and Wi-Fi®. This antenna is intended for Surface Mount Device (SMD) mounting, making it suitable for automated assembly processes.
Key electrical characteristics include a peak gain of 1.8 dBi for the 2.4-2.5 GHz band and 4.1 dBi for the 4.9-5.9 GHz band. The return loss is a maximum of -15 dB in the lower band and -11 dB in the upper band, with a maximum VSWR of 1.4:1 and 1.8:1 respectively. The antenna operates with a nominal impedance of 50 Ω.
With dimensions of 10 x 10 x 0.9 mm and a weight of 0.2 g, the A10194 is a lightweight and compact solution. It is supplied in tape on reel for efficient handling and placement. The operating temperature range is -40 °C to +85 °C.
Applications for this antenna include mobile phones, PDAs, portable media players, headsets, PC-cards, game consoles, access points, set-top boxes, and networked digital TVs. Its design requires a ground plane, which is an active part of the antenna system, necessitating careful placement within the host device.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The antenna supports dual bands: 2.4 – 2.5 GHz and 4.9 – 5.9 GHz.
The peak gain in the 2.4 – 2.5 GHz band is 1.8 dBi.
The peak gain in the 4.9 – 5.9 GHz band is 4.1 dBi.
The operating temperature range is -40 °C to +85 °C.
The dimensions are 10 x 10 x 0.9 mm.
The antenna is designed for SMD (Surface Mount Device) mounting.
