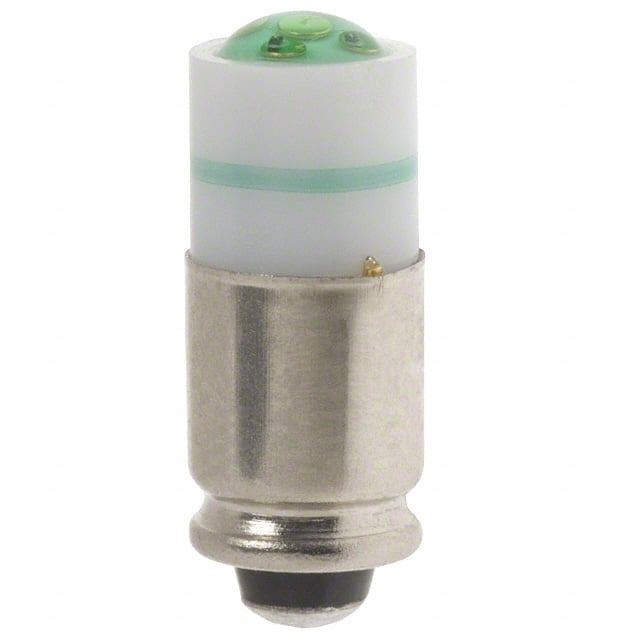

The APEM Inc. A0142N2 is a versatile pushbutton switch and indicator from the A02 series. It is designed for applications requiring illuminated feedback, featuring a Green LED with a 24V operating voltage. This component boasts a high electrical rating of 12A at 250VAC and 12A at 12VDC, with an initial contact resistance of 10mΩ maximum.
The switch is built for durability, offering a mechanical life of 1 million cycles for momentary operation and 100,000 cycles for maintained operation. It features panel sealing to IP65 and rear sealing to IP40, making it suitable for various environmental conditions. The terminals are M3 captive screw and push-on tab type, facilitating secure connections.
Constructed with materials like PBT for the operator and PC for screens, this switch is designed for reliable performance. The operating temperature range is -20°C to +85°C. The panel cut-out dimensions are Ø22mm or 29.5 x 21.5mm, allowing for flexible integration into control panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LED on the APEM A0142N2 switch operates at 24V.
The APEM A0142N2 switch has a maximum rating of 12A at 250VAC and 12A at 12VDC.
The electrical life expectancy for the APEM A0142N2 switch is a minimum of 50,000 cycles.
The APEM A0142N2 switch can operate in temperatures ranging from -20°C to +85°C.
