| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Analog Input Pins | |
| Board Length | |
| Board Type | |
| Board Width | |
| Clock Speed | |
| Contents | |
| Core Processor | |
| DC Current for 3.3V Pin | |
| DC Current per I/O Pin | |
| Digital I/O Pins | |
| EEPROM | |
| Flash Memory | |
| Input Voltage (Limit) | |
| Input Voltage (Recommended) | |
| LED_BUILTIN | |
| Microcontroller | |
| Mounting Type | |
| Operating Voltage | |
| PWM Output Pins | |
| Platform | |
| SRAM | |
| Type | |
| Utilized IC | |
| Weight |

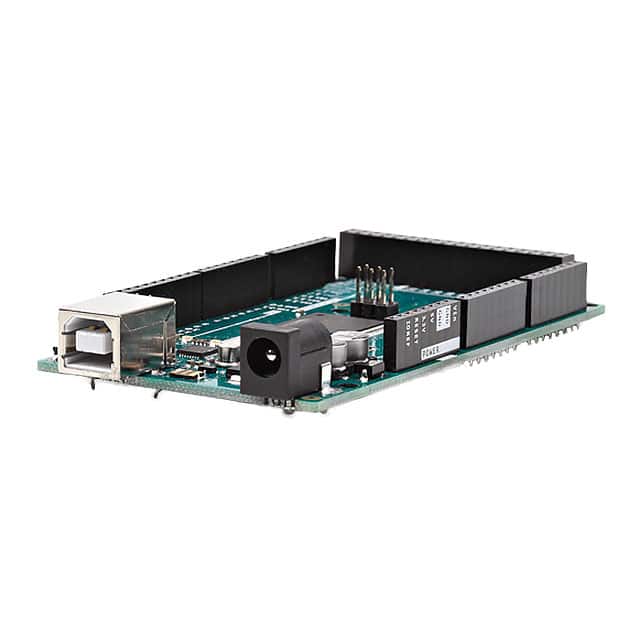

The Arduino Mega 2560 Rev3 (A000067) is a microcontroller evaluation board based on the ATmega2560. It provides 54 digital input/output pins (15 capable of PWM output), 16 analog inputs, 4 hardware UARTs, a 16 MHz crystal oscillator, USB connection, power jack, ICSP header, and reset button.
Operating at 5 V with a recommended input voltage of 7-12 V, the board includes 256 KB of flash memory (8 KB used by bootloader), 8 KB SRAM, and 4 KB EEPROM. It is designed for complex projects such as 3D printers and robotics, and is compatible with most shields designed for Arduino Uno and earlier boards.
The board measures 101.52 mm by 53.3 mm and weighs 37 g. It uses a fixed mounting type and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $49.90 | $49.90 |
| 10+ | $48.90 | $48.90 |
| 25+ | $48.05 | $48.05 |
| 50+ | $46.78 | $46.78 |
| 100+ | $44.66 | $44.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 5 V.
It has 54 digital I/O pins, of which 15 can be used as PWM outputs.
The flash memory is 256 KB, with 8 KB used by the bootloader.
The clock speed is 16 MHz.
The recommended input voltage is 7 V to 12 V.
Yes, it is RoHS3 compliant.
