9ZX21901DKLFT The Renesas 9ZX21901DKLFT is an IC buffer designed for clock and timing applications. It supports Intel QPI and PCI Express interfaces.
Mfr Part #:

9ZX21901DKLFT

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas 9ZX21901DKLFT is an IC buffer designed for clock and timing applications. It supports Intel QPI and PCI Express interfaces.
✓ Total Stock: 14,099 pcs

9ZX21901DKLFT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
13,989 pcs
On Request
13989 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9ZX21901DKLFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Main Purpose
Mounting Type
Operating Temperature
Output
PLL
Ratio
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

9ZX21901DKLFT Description

Short technical summary and product information.

The Renesas 9ZX21901DKLFT is an integrated circuit buffer designed for application-specific clock and timing functions. It operates at a frequency of 400MHz and supports a voltage range of 3.135V to 3.465V.



This IC is suitable for applications requiring Intel QPI and PCI Express (PCIe) interfaces. It features a 1:19 input to output ratio and differential input/output capabilities. The operating temperature range is from 0°C to 70°C (TA).

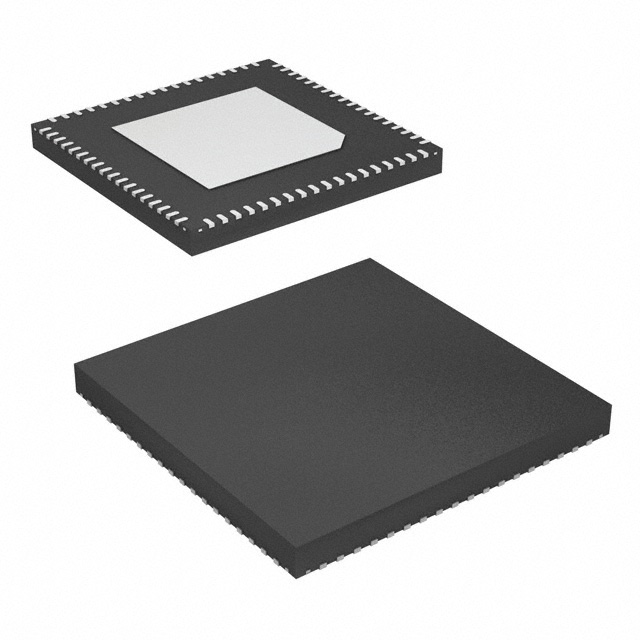

The device is available in a 72-VFQFPN Exposed Pad package, designed for surface mounting. It includes a PLL with a bypass function and outputs HCSL signals. The RoHS status is compliant, and it has an MSL of 1.

9ZX21901DKLFT Quick Information

Product Type: Clock/Timing IC
Canonical Name: Renesas 9ZX21901DKLFT IC Buffer
Subcategory: Clock/Timing

9ZX21901DKLFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9ZX21901DKLFT Features

  • 400MHz clock buffer IC
  • Supports Intel QPI and PCIe
  • Differential input and output
  • Surface mount 72-VFQFPN package
  • RoHS3 compliant

9ZX21901DKLFT Applications

  • Ideal for PCIe clock distribution
  • Suitable for Intel QPI systems
  • High-speed signal buffering
  • Clock generation circuits

9ZX21901DKLFT FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the 9ZX21901DKLFT?

The operating voltage for the 9ZX21901DKLFT is between 3.135V and 3.465V.

What is the package type of the 9ZX21901DKLFT?

The 9ZX21901DKLFT is supplied in a 72-VFQFPN Exposed Pad package.

What is the operating temperature range for this IC?

The operating temperature range for the 9ZX21901DKLFT is 0°C to 70°C (TA).

Is the 9ZX21901DKLFT RoHS compliant?

The RoHS status for the 9ZX21901DKLFT is RoHS3 Compliant.
