| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Ingress Protection | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

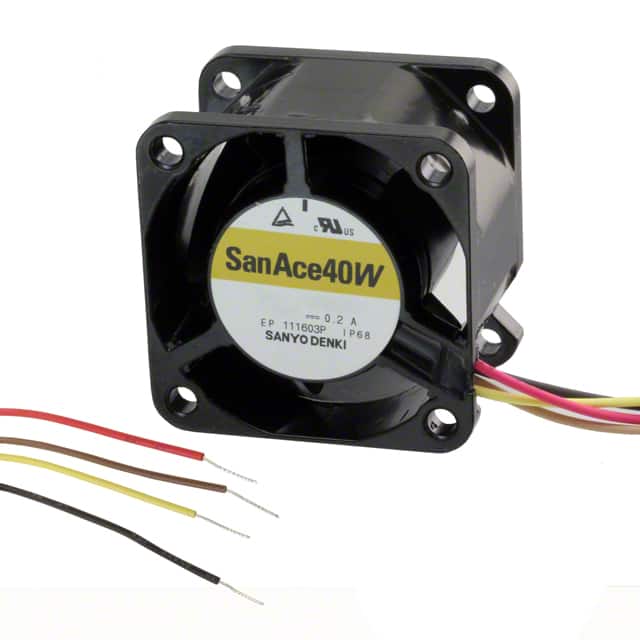

The 9WL0412P3J001 is a high-performance axial fan from Sanyo Denki, designed for demanding cooling applications. It features a compact 40mm x 40mm frame with a 28mm depth, operating at 12VDC with a power consumption of 6.24W. The fan delivers an airflow of 0.622 m³/min (22.2 CFM) and a static pressure of 401 Pa, making it suitable for applications requiring high pressure in a small form factor. With a rated speed of 17500 RPM, the fan produces a noise level of 51.0 dB(A).
The fan is constructed with a ball bearing system for reliability and longevity, and it is rated IP68 for dust tightness and waterproof protection, suitable for harsh environments. It includes PWM control and a speed sensor (tach) output for precise speed regulation and monitoring. The termination is 4 wire leads, allowing easy integration into control systems.
Operating temperature range is -20 to 70°C, and the fan complies with RoHS3, REACH unaffected, and MSL Level 1. It is approved by CSA, TUV, and UL. This fan is ideal for cooling electronics in industrial, automotive, and outdoor equipment where space is limited and reliability is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $67.74 | $67.74 |
| 10+ | $59.06 | $59.06 |
| 25+ | $58.86 | $58.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates at 12VDC.
The fan measures 40mm x 40mm with a width of 28mm.
The operating temperature range is -20 to 70°C.
The fan is listed as RoHS3 compliant, but this is unverified and should be confirmed.
The fan delivers 0.622 m³/min airflow and 401 Pa static pressure.
The fan is IP68 rated, dust tight and waterproof.
Yes, it features PWM control and a speed sensor (tach).
