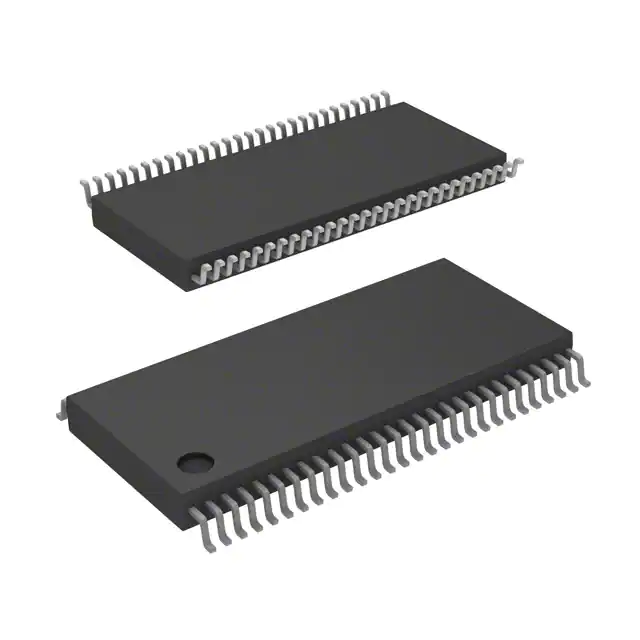

9LPRS525AGILF The Renesas Electronics America Inc 9LPRS525AGILF is a clock/frequency synthesizer IC designed for Intel CPU and PCI Express applications. It operates at a maximum frequency of 400MHz.
Mfr Part #:

9LPRS525AGILF

Available from 2 distributors
Mfr Name: ICS (IDT)
ICS (IDT)
The Renesas Electronics America Inc 9LPRS525AGILF is a clock/frequency synthesizer IC designed for Intel CPU and PCI Express applications. It operates at a maximum frequency of 400MHz.
✓ Total Stock: 5,923 pcs
$ Price Range: $1.96

9LPRS525AGILF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,266 pcs
On Request
3266 pcs On Request 1 On Request On Request 1048+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,657 pcs
On Request
2657 pcs On Request 1 On Request On Request 1048+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9LPRS525AGILF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Mounting Type
Number of Circuits
Operating Temperature
Programmable
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

9LPRS525AGILF Description

Short technical summary and product information.

The Renesas Electronics America Inc 9LPRS525AGILF is an integrated circuit designed for clock and frequency synthesis, specifically for Intel CPU and PCI Express (PCIe) interfaces. This device offers a maximum operating frequency of 400MHz and supports a supply voltage range of 3.135V to 3.465V.



With a single output and a programmable PLL, the 9LPRS525AGILF is suitable for applications requiring precise clock generation. It operates within a temperature range of -40°C to 85°C, making it robust for various environmental conditions. The IC is available in a 56-TSSOP package, designed for surface mounting.



This component is categorized under Integrated Circuits (ICs) and specifically within Clock/Timing - Application Specific Clock/Timing. It adheres to ROHS3 compliance standards and has a Moisture Sensitivity Level (MSL) of 1.

9LPRS525AGILF Quick Information

Product Type: Clock/Frequency Synthesizer IC
Canonical Name: Renesas Electronics America Inc 9LPRS525AGILF Clock/Frequency Synthesizer IC
Subcategory: Application Specific

9LPRS525AGILF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

9LPRS525AGILF Estimated Pricing

Qty Low High
1+ $1.96 $1.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

9LPRS525AGILF Features

  • Clock/frequency synthesizer for Intel CPU and PCIe.
  • Maximum operating frequency of 400MHz.
  • Supply voltage range of 3.135V to 3.465V.
  • Surface mountable in a 56-TSSOP package.
  • Operates from -40°C to 85°C.

9LPRS525AGILF Applications

  • Ideal for Intel CPU clock generation.
  • Suitable for PCI Express clocking.
  • Used in systems requiring frequency synthesis.
  • Designed for embedded system timing.

9LPRS525AGILF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum frequency of the 9LPRS525AGILF?

The maximum frequency is 400MHz.

What is the operating voltage range for the 9LPRS525AGILF?

The operating voltage range is 3.135V to 3.465V.

What is the operating temperature range for this IC?

The operating temperature range is -40°C to 85°C.

What type of package is the 9LPRS525AGILF supplied in?

It is supplied in a 56-TSSOP package.

Is the 9LPRS525AGILF RoHS compliant?

Yes, it is ROHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the 9LPRS525AGILF?

The MSL is 1 (Unlimited).
