| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Material | |
| Current | |
| Insulation Material | |
| Insulation Resistance | |
| Operating Temperature | |
| Prop 65 | |
| SVHC Present | |
| Voltage Rating |

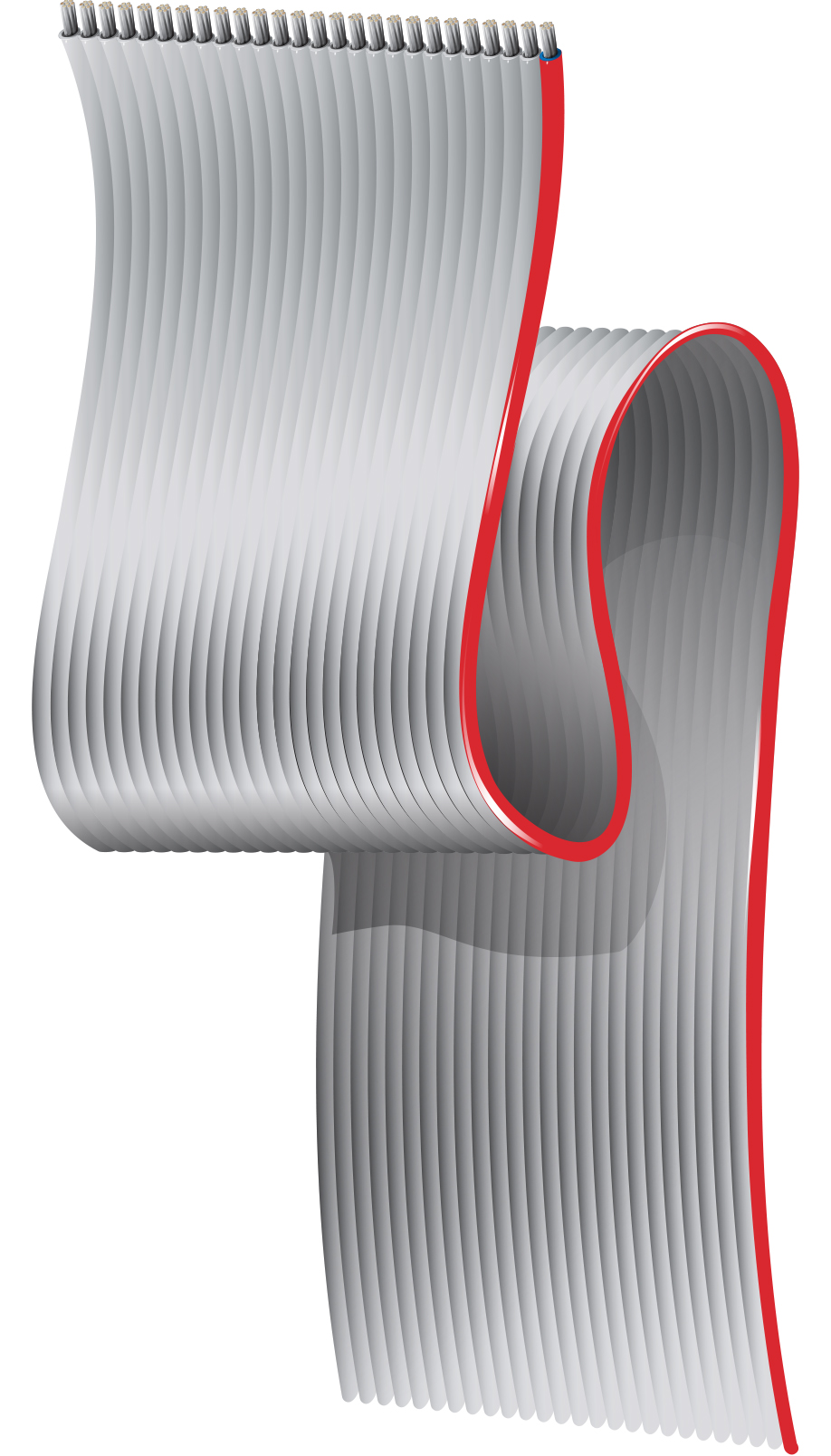

This Belden Inc. 9L28014 is a flat gray ribbon cable designed for internal interconnections and wiring within electronic equipment. It features 14 conductors, each with 28 AWG stranded tinned copper, and is insulated with PVC.
The cable has a conductor spacing of 0.050 inches and an overall width of 0.700 inches. It is rated for a maximum recommended current of 1 Amp per conductor and has a dielectric withstand voltage of 2000V, with a UL voltage rating of 300V.
Operating within a temperature range of -40°C to +105°C, this cable is suitable for reliable mass-termination to standard IDC connectors. Its construction includes a nominal insulation wall thickness of 0.010 inches and a flat section thickness of 0.035 inches.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 9L28014 cable has 14 conductors.
The conductors are 28 AWG stranded tinned copper.
The insulation material is PVC (Polyvinyl Chloride).
The operating temperature range is -40°C to +105°C.
The UL voltage rating is 300V.
The conductor spacing is 0.050 inches.
The maximum recommended current is 1 Amp per conductor.
