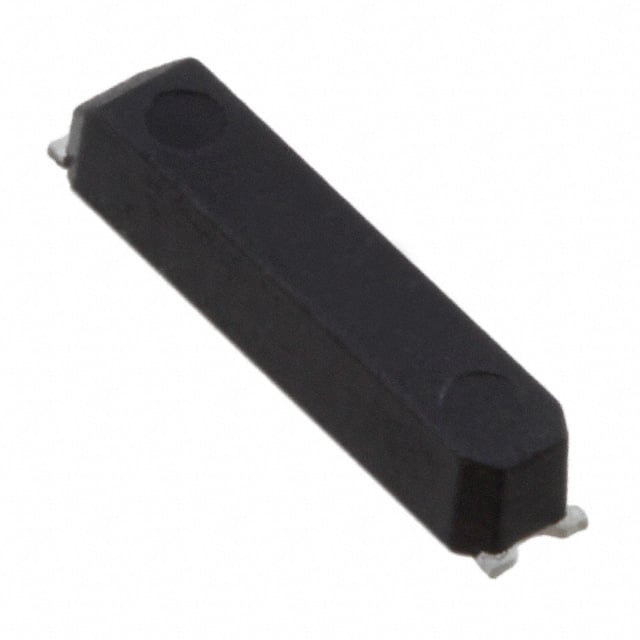

The 9HT7-32.768KDZF-T is a kHz tuning fork crystal from TXC Corporation, designed for precise timekeeping in small mobile devices and consumer products. It operates at a nominal frequency of 32.768 kHz with a load capacitance of 12.5 pF and a frequency tolerance of ±20 ppm at 25°C.
Electrical characteristics include a maximum ESR of 65 kΩ, typical shunt capacitance of 0.8 pF, and typical motional capacitance of 1.9 fF. The crystal operates in fundamental mode and is rated for a maximum drive level of 1 μW. It has a temperature coefficient of -0.04 ppm/°C² and a turnover temperature of 25°C ± 5°C.
The crystal is housed in a 4-SMD flat leads package measuring 6.9 mm x 1.4 mm x 1.4 mm and is surface mountable. It supports an operating temperature range of -40°C to +85°C and a storage temperature range of -55°C to +125°C. The part is RoHS compliant with a Pb exemption and is supplied on tape and reel.
