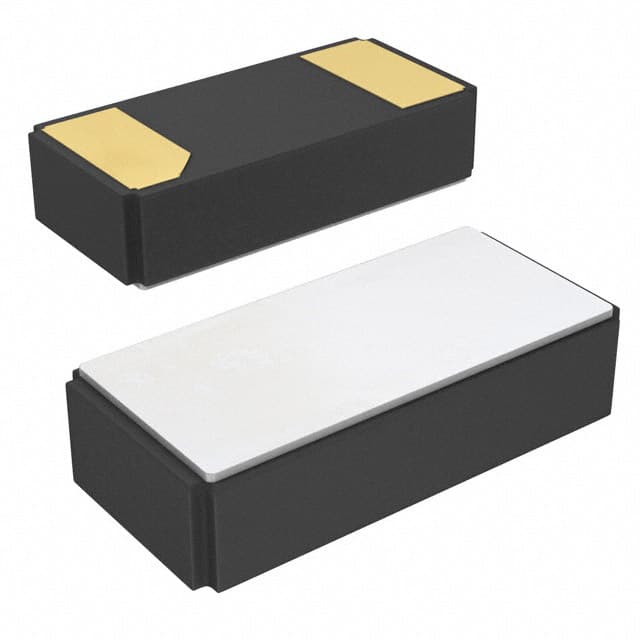

9H03200019 32.768 kHz tuning fork crystal from TXC Corporation with ±20ppm frequency tolerance and 12.5pF load capacitance. Surface mount package 3.2x1.5mm.
Mfr Part #:

9H03200019

Available from 1 distributors
Mfr Name: TXC Corporation
TXC Corporation
32.768 kHz tuning fork crystal from TXC Corporation with ±20ppm frequency tolerance and 12.5pF load capacitance. Surface mount package 3.2x1.5mm.
✓ Total Stock: 63,000 pcs
$ Price Range: $0.40

9H03200019 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
63,000 pcs
On Request
63000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9H03200019 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Height
Industrial Grade
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Package / Case
Tape & Reel
Temperature Coefficient
Type
Width
View Similar Products (0)

9H03200019 Description

Short technical summary and product information.

This is a 32.768 kHz tuning fork crystal designed for timekeeping and real-time clock applications. It offers a frequency tolerance of ±20ppm at 25°C and is specified with a load capacitance of 12.5pF.



The crystal features a maximum equivalent series resistance (ESR) of 70 kΩ and a typical motional capacitance of 3.1 fF. It operates over a temperature range of -40°C to 85°C and has a temperature coefficient of -0.04 ppm/°C².



The component is housed in a compact 2-SMD, no lead ceramic package measuring 3.2mm x 1.5mm x 0.85mm, suitable for surface mount assembly. The package is RoHS compliant and lead-free according to the datasheet.



Typical applications include consumer electronics, communication devices, and small mobile devices requiring accurate timekeeping.

9H03200019 Quick Information

Product Type: Crystal
Series: 9HT10
Canonical Name: TXC 9HT10 Series 32.768 kHz ±20ppm Crystal, 12.5pF, SMD
Subcategory: Surface Mount Crystals

9H03200019 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb free

9H03200019 Estimated Pricing

Qty Low High
3,000+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

9H03200019 Features

  • 32.768 kHz nominal frequency for timekeeping.
  • ±20ppm frequency tolerance at 25°C.
  • 12.5pF load capacitance specification.
  • Maximum ESR of 70 kΩ.
  • Surface mount 3.2x1.5mm ceramic package.

9H03200019 Applications

  • Used in real-time clock (RTC) circuits.
  • Ideal for consumer electronics timekeeping.
  • Suitable for small mobile devices.
  • Common in communication devices.

9H03200019 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package size and mounting type?

The crystal comes in a 3.2mm x 1.5mm x 0.85mm 2-SMD, no lead package for surface mount.

What is the operating temperature range?

-40°C to 85°C.

Is this component RoHS compliant?

The datasheet claims RoHS compliance and lead-free status, but the compliance is unverified and no certificate URL is available.

What is the nominal frequency?

32.768 kHz.

What is the frequency tolerance?

±20ppm at 25°C.

What is the load capacitance?

12.5pF.

What is the equivalent series resistance?

Maximum 70 kΩ at 25°C.
