Mfr Part #:

9GT0612P4G001

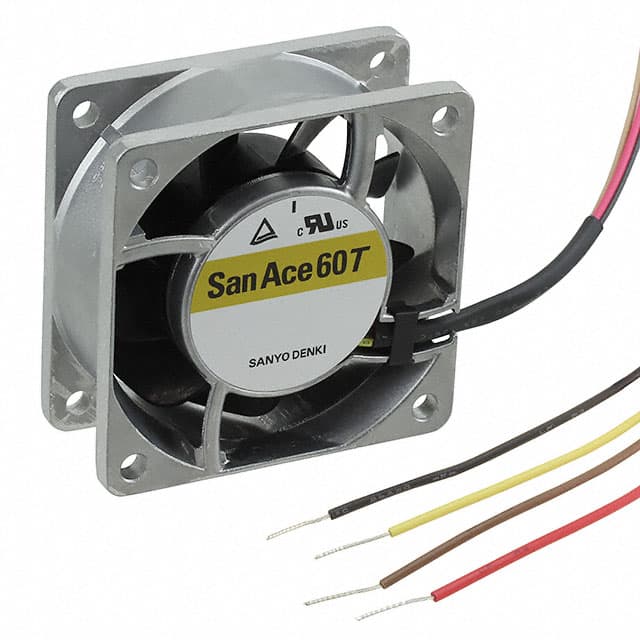

The Sanyo Denki 9GT0612P4G001 is a 12VDC tubeaxial fan measuring 60x60x25mm. It delivers 44.5 CFM of airflow with a static pressure of 0.976 in H2O and a noise level of 52 dB(A).

✓ Total Stock: 699 pcs

$ Price Range: $59.19 - $75.09

9GT0612P4G001 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	699 pcs On Request	699 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

9GT0612P4G001 Description

Short technical summary and product information.

The Sanyo Denki 9GT0612P4G001 is a DC brushless tubeaxial fan designed for reliable cooling in a compact 60x60x25mm form factor. It operates at a rated voltage of 12VDC, consuming 6.72W of power with a current draw of 0.56A (calculated). The fan delivers an airflow of 44.5 CFM (1.25 m³/min) and a static pressure of 0.976 in H2O (243 Pa) at a speed of 10,000 RPM. Noise level is rated at 52 dB(A).

The fan features a ball bearing system for extended life and reliability. It includes PWM control for variable speed operation and a tachometer output for speed monitoring. The termination is via 4 wire leads. The operating temperature range is -40 to 85°C, making it suitable for harsh environments. It carries approvals from CSA, TUV, and UL, and is listed as RoHS3 compliant, REACH unaffected, with MSL level 1 (unlimited).

This fan is ideal for applications requiring efficient thermal management in confined spaces, such as telecommunications equipment, industrial controls, and medical devices. The PWM control allows precise airflow adjustment, while the tachometer provides real-time speed feedback for system monitoring.

9GT0612P4G001 Quick Information

Product Type: DC Brushless Fan

Series: San Ace 60T

Canonical Name: Sanyo Denki 9GT0612P4G001 DC Brushless Fan, 60x60x25mm, 12VDC, 44.5 CFM

Subcategory: Tubeaxial Fan

9GT0612P4G001 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

9GT0612P4G001 Estimated Pricing

Qty	Low	High
1+	$75.09	$75.09
10+	$65.28	$65.28
25+	$59.19	$59.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

9GT0612P4G001 Features

Rated for 12VDC operation.
Delivers 44.5 CFM airflow.
Features PWM control and tachometer.
Ball bearing for long life.
Operating temperature range -40 to 85°C.

9GT0612P4G001 Applications

Ideal for cooling electronics enclosures.
Used in telecommunications equipment.
Suitable for industrial automation systems.
Applicable in medical devices requiring reliable cooling.

9GT0612P4G001 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the rated voltage of the fan?

12VDC

What is the operating temperature range?

-40 to 85°C

Is this fan RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the airflow rating?

44.5 CFM (1.25 m³/min)

What is the noise level?

52 dB(A)

What type of bearing does it use?

Ball bearing

Does it support PWM control?

Yes, it has PWM control and a tachometer output.

Category	DC Brushless Fans (BLDC)
Manufacturer Name	Sanyo Denki
Air Flow	44.5 CFM (1.25 m³/min)
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Consumption	0.56 A
Dimensions	Square - 60mm L x 60mm H, 25.00mm Width
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lead Style	Wire Leads
Noise	52.0 dB(A)
Operating Temperature	-40 ~ 185°F (-40 ~ 85°C)
Power (Watts)	6.72 W
RPM	10000 RPM
Static Pressure	0.976 in H2O (243.0 Pa)
Tape & Reel	No
Termination	4 Wire Leads
Termination Style	4 Wire Leads
Voltage	12 VDC
Weight	0.22 lb (99.79 g)
Width	25.00mm
