| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

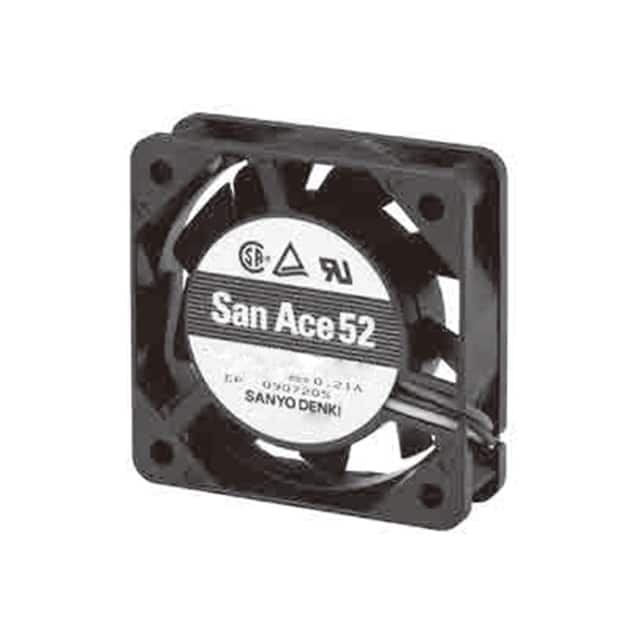

The Sanyo Denki 9GA0524P7G001 is a 24 VDC tubeaxial fan designed for compact cooling applications. With a frame size of 52mm x 52mm x 15mm, it generates 17.7 CFM (0.496 m³/min) of airflow at a static pressure of 0.367 in H2O (91.5 Pa). The fan operates at 7800 RPM and produces 38.0 dB(A) of noise. It features ball bearings for reliability and long life. The 4-wire lead termination includes PWM control for variable speed and a tachometer output for speed monitoring. Power consumption is 1.68 W. The fan is rated for operating temperatures from -20°C to 70°C and weighs 39.92 g (0.088 lb). It is suitable for cooling electronics, servers, and other equipment requiring efficient thermal management in a small form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.18 | $20.18 |
| 10+ | $16.32 | $16.32 |
| 25+ | $15.30 | $15.30 |
| 50+ | $14.82 | $14.82 |
| 100+ | $14.01 | $14.01 |
| 280+ | $14.00 | $14.00 |
| 560+ | $13.82 | $13.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 VDC.
The fan has a 52mm x 52mm x 15mm frame with 4 wire leads for PWM control and tachometer output.
-20°C to 70°C.
The fan is listed as RoHS3 compliant, but the status is unverified.
17.7 CFM (0.496 m³/min).
38.0 dB(A).
Yes, the fan features PWM control and a speed sensor (tachometer).
