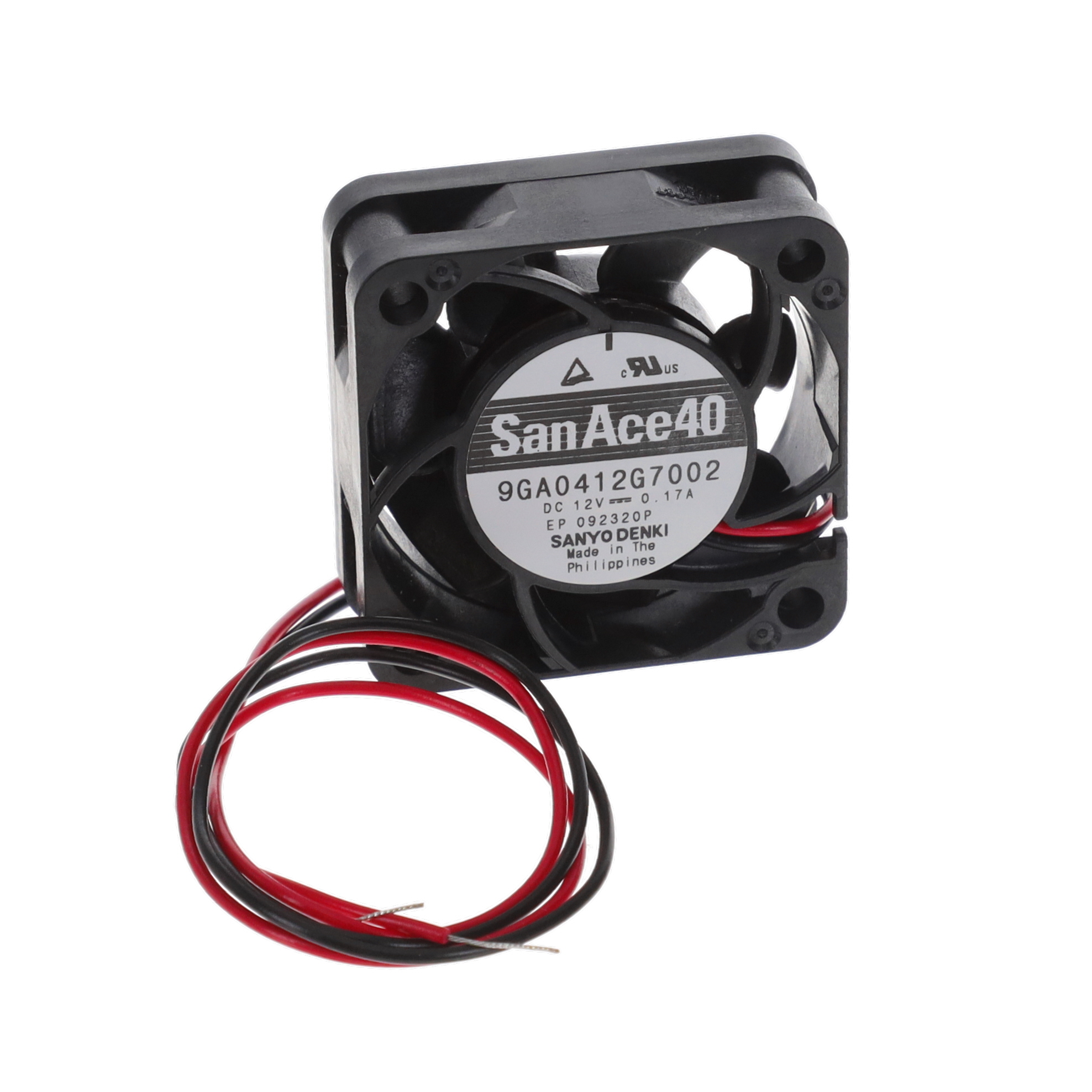

9GA0412G7002 9GA0412G7002 is a 12VDC tubeaxial fan manufactured by Sanyo Denki. It measures 40x15mm, delivers 12.7 CFM at 13100 RPM, and features ball bearing construction.
Mfr Part #:

9GA0412G7002

Available from 1 distributors
Mfr Name: Sanyo Denki
Sanyo Denki
9GA0412G7002 is a 12VDC tubeaxial fan manufactured by Sanyo Denki. It measures 40x15mm, delivers 12.7 CFM at 13100 RPM, and features ball bearing construction.
✓ Total Stock: 2,647 pcs
$ Price Range: $11.60 - $15.68

9GA0412G7002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,647 pcs
On Request
2647 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9GA0412G7002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Features
Lead Style
Noise
Operating Temperature
Power (Watts)
RPM
Static Pressure
Termination
Termination Style
Voltage
Weight
Width
View Similar Products (0)

9GA0412G7002 Description

Short technical summary and product information.

The 9GA0412G7002 is a 12 VDC tubeaxial fan from Sanyo Denki, designed for cooling applications requiring compact size and reliable performance. With a 40 mm by 40 mm frame and 15 mm depth, this fan delivers 12.7 CFM of airflow and 0.770 in H2O static pressure at 13100 RPM, generating 42.0 dB(A) of noise.



Power consumption is 2.04 W, and the fan operates over a temperature range of -20°C to 70°C. It features ball bearings for long life and locked rotor protection for enhanced reliability. The termination is two wire leads, and it is approved by CSA, TUV, and UL.



Typical applications include cooling of electronics, telecommunications equipment, and industrial control systems where space is constrained. The 40x15mm size is commonly used in servers, networking gear, and medical devices.

9GA0412G7002 Quick Information

Product Type: DC Brushless Fan (BLDC)
Canonical Name: 9GA0412G7002 Tubeaxial Fan, 40x15mm, 12VDC, 12.7 CFM, Ball Bearing
Subcategory: DC Brushless Fans (BLDC)

9GA0412G7002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9GA0412G7002 Estimated Pricing

Qty Low High
1+ $15.68 $15.68
10+ $13.35 $13.35
25+ $12.16 $12.16
50+ $11.60 $11.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

9GA0412G7002 Features

  • 12VDC operation with 2.04 W power consumption.
  • Delivers 12.7 CFM and 0.770 in H2O static pressure.
  • Ball bearing for long operational life.
  • Locked rotor protection included.
  • Compact 40x15mm frame size.

9GA0412G7002 Applications

  • Used for cooling electronic enclosures and servers.
  • Ideal for telecommunications equipment thermal management.
  • Suitable for industrial control panel ventilation.
  • Common in medical device cooling applications.

9GA0412G7002 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 9GA0412G7002?

12 VDC.

What is the operating temperature range?

-20 °C to 70 °C.

What is the airflow rating?

12.7 CFM (0.356 m³/min).

What is the noise level?

42.0 dB(A).

What bearing type does it use?

Ball bearing.

Is the fan RoHS compliant?

RoHS3 compliant (unverified).

What is the fan frame size?

40 mm x 40 mm.
