| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

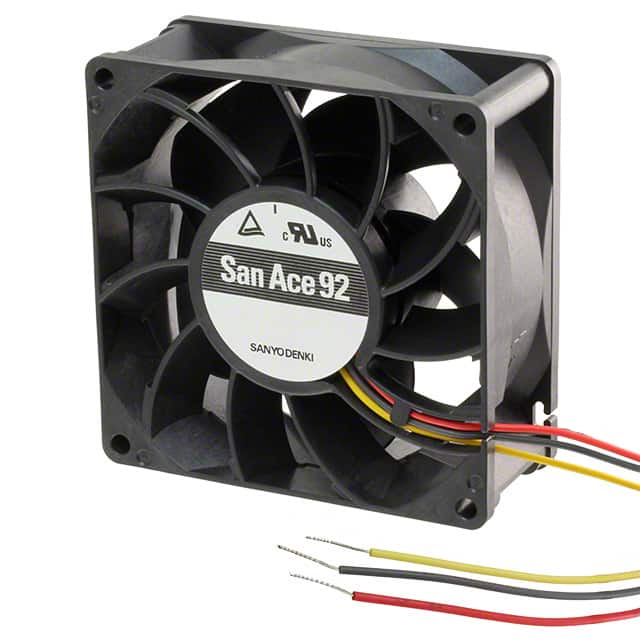

The Sanyo Denki 9G0924H101 is a 24 VDC tubeaxial fan from the San Ace 92 series. It features a square 92mm by 92mm frame with a 38mm depth, making it suitable for standard 92mm fan mounting applications. This fan delivers 90.0 CFM (2.52 m³/min) of airflow with a static pressure of 0.401 in H2O (100.0 Pa) at a nominal speed of 4000 RPM. It operates at a noise level of 43.0 dB(A) and consumes 7.2 W of power. The fan uses ball bearings for long life and reliability. It includes a speed sensor (tachometer) output via three wire leads for monitoring fan speed. The operating temperature range is -4 to 140°F (-20 to 60°C). It weighs 0.397 lb (180.08 g).
| Qty | Low | High |
|---|---|---|
| 1+ | $35.10 | $35.10 |
| 10+ | $28.17 | $28.17 |
| 28+ | $25.72 | $25.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal operating voltage is 24 VDC.
The operating temperature range is -4 to 140°F (-20 to 60°C).
It delivers 90.0 CFM (2.52 m³/min) of airflow with a static pressure of 0.401 in H2O (100.0 Pa).
It uses ball bearings.
Yes, it includes a speed sensor (tachometer) output via three wire leads.
The noise level is 43.0 dB(A).
The fan has a square 92mm by 92mm frame with a 38mm depth.
