9FG108EGLFT The Renesas 9FG108EGLFT is an IC frequency timing generator designed for applications like Intel CPU Servers, PCI Express, and SATA. It operates at 400MHz with a voltage range of 3.135V to 3.465V.
Mfr Part #:

9FG108EGLFT

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas 9FG108EGLFT is an IC frequency timing generator designed for applications like Intel CPU Servers, PCI Express, and SATA. It operates at 400MHz with a voltage range of 3.135V to 3.465V.
✓ Total Stock: 4,512 pcs

9FG108EGLFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9FG108EGLFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Package / Case
Ratio
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

9FG108EGLFT Description

Short technical summary and product information.

The Renesas 9FG108EGLFT is an application-specific clock and timing generator IC. It is designed for high-performance applications including Intel CPU Servers, PCI Express (PCIe), and SATA interfaces.



This device features a maximum frequency of 400MHz and operates within a voltage range of 3.135V to 3.465V. It includes a Phase-Locked Loop (PLL) circuit and supports both Clock and Crystal inputs, with an output type of HCSL. The generator provides a clock ratio of 1:9 and is configured as a single circuit.

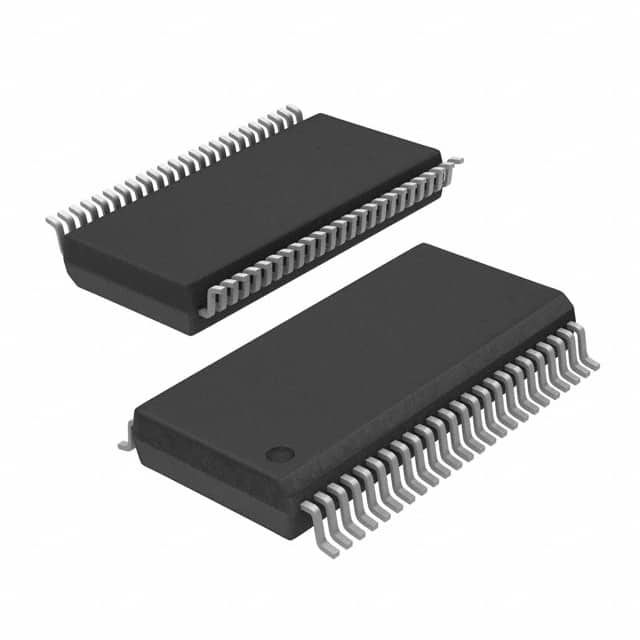

The 9FG108EGLFT is available in a 48-TSSOP package and utilizes surface mount technology for integration into electronic designs. It operates within a temperature range of 0°C to 70°C.

9FG108EGLFT Quick Information

Product Type: Clock Generator
Canonical Name: 9FG108EGLFT Clock Generator
Subcategory: Application Specific ClockTiming

9FG108EGLFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9FG108EGLFT Features

  • 400MHz frequency clock generator IC.
  • Supports Intel CPU Server, PCIe, SATA.
  • Operates at 3.135V to 3.465V.
  • Features PLL and HCSL output.
  • Packaged in 48-TSSOP for surface mounting.

9FG108EGLFT Applications

  • Ideal for Intel CPU server systems.
  • Used in PCI Express interfaces.
  • Suitable for SATA storage devices.
  • Provides precise clock timing generation.

9FG108EGLFT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 9FG108EGLFT?

3.135V to 3.465V.

What is the operating temperature range?

0°C to 70°C.

What package does the 9FG108EGLFT come in?

48-TSSOP (0.240", 6.10mm width) surface mount package.

What is the output frequency of this timing generator?

400MHz.

What is the output type?

HCSL.

What is the clock input to output ratio?

1:9.

Does the 9FG108EGLFT include a PLL?

Yes.
