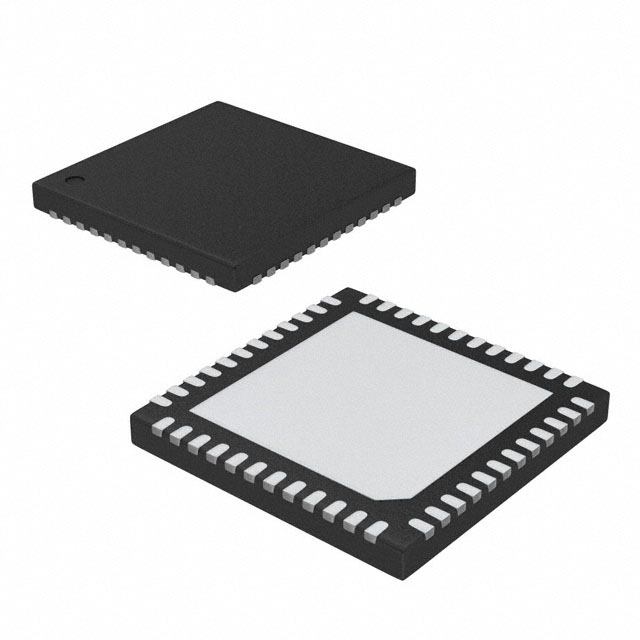

9DBU0941AKLF Renesas 9DBU0941AKLF is a PCI Express (PCIe) clock buffer with 1:9 input-to-output ratio. It operates at up to 167 MHz with HCSL input and LP-HCSL output, in a 48-VFQFN package.
Mfr Part #:

9DBU0941AKLF

Available from 1 distributors
Mfr Name: Renesas
Renesas
Renesas 9DBU0941AKLF is a PCI Express (PCIe) clock buffer with 1:9 input-to-output ratio. It operates at up to 167 MHz with HCSL input and LP-HCSL output, in a 48-VFQFN package.
✓ Total Stock: 7,525 pcs

9DBU0941AKLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
7,525 pcs
On Request
7525 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

9DBU0941AKLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Ratio
Supplier Device Package
Voltage
View Similar Products (0)

9DBU0941AKLF Description

Short technical summary and product information.

The Renesas 9DBU0941AKLF is a 1:9 fanout buffer designed for PCI Express (PCIe) clock distribution. It accepts HCSL or LVDS differential inputs and provides nine LP-HCSL outputs. The device operates from a 1.425 V to 1.575 V supply and supports clock frequencies up to 167 MHz. It is a non-PLL buffer, ensuring low additive jitter for PCIe Gen1/2/3 applications.



The buffer is housed in a 48-VFQFN Exposed Pad package (48-VFQFPN 6x6 mm) and is surface mount compatible. The operating temperature range is 0°C to 70°C, making it suitable for commercial environments. The differential input and output architecture maintains signal integrity over typical motherboard trace lengths.



This part is ideal for use in desktop and server platforms where multiple PCIe slots require a clean, buffered reference clock. The 1:9 ratio allows a single input to drive up to nine loads, simplifying clock tree design.

9DBU0941AKLF Quick Information

Product Type: PCI Express Clock Buffer
Canonical Name: Renesas 9DBU0941AKLF PCI Express (PCIe) Clock Buffer
Subcategory: Application Specific Clock/Timing

9DBU0941AKLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9DBU0941AKLF Features

  • 1:9 input-to-output fanout buffer.
  • Supports PCI Express clock distribution.
  • HCSL input and LP-HCSL output.
  • Maximum frequency of 167 MHz.
  • Surface mount 48-VFQFN package.

9DBU0941AKLF Applications

  • Used in PCI Express clock trees.
  • Ideal for server and desktop motherboards.
  • Suitable for PCIe Gen1/2/3 systems.
  • Provides low-power HCSL outputs.

9DBU0941AKLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

1.425 V to 1.575 V

What is the package type?

48-VFQFN Exposed Pad (48-VFQFPN 6x6)

What is the operating temperature range?

0°C to 70°C

Is the 9DBU0941AKLF RoHS compliant?

RoHS3 Compliant (unverified)

What are the input and output logic levels?

Input: HCSL; Output: LP-HCSL

What is the maximum frequency?

167 MHz

How many outputs does it have?

9 outputs (1:9 ratio)
