| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
61,900 pcs
|
61900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Equivalent Series Resistance (ESR) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mode of Oscillation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Shunt Capacitance | |
| Storage Temperature | |
| Storage Temperature Range | |
| Termination Style | |
| Type | |
| Width |

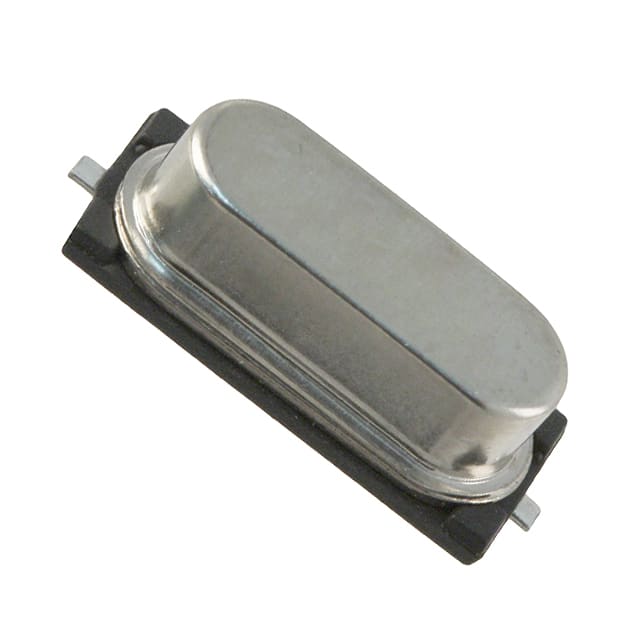

The 9C25000355 is a surface mount MHz crystal from TXC Corporation's 9C series. It operates at a fundamental frequency of 25 MHz with a frequency tolerance of ±30 ppm at 25°C and a frequency stability of ±30 ppm over the operating temperature range of 0°C to 70°C. The crystal is designed for a load capacitance of 20 pF.
This crystal features a maximum equivalent series resistance (ESR) of 30 Ω, ensuring good performance in oscillator circuits. It is housed in a compact HC-49/US surface mount package with dimensions of 11.40 mm x 4.80 mm x 4.10 mm, making it suitable for space-constrained applications.
The 9C25000355 is RoHS compliant and lead-free, meeting current environmental standards. Typical applications include personal computers, set-top boxes, LCD monitors, and cable modems where a reliable and stable frequency reference is required.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 9C25000355 crystal operates at 25 MHz.
The frequency tolerance is ±30 ppm at 25°C.
The load capacitance is 20 pF.
The operating temperature range is 0°C to 70°C.
Yes, the 9C25000355 is RoHS compliant and lead-free as per the datasheet.
The crystal is in a surface mount HC-49/US package measuring 11.4 mm x 4.8 mm x 4.1 mm.
The maximum ESR is 30 Ω at 25 MHz fundamental mode.
