| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bend Radius (Minimum) | |
| Bulk Cable Weight | |
| Cable Type | |
| China RoHS | |
| Conductor DCR | |
| Conductor Material | |
| Conductor Strand | |
| Flammability Rating | |
| Insertion Loss | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Max Current | |
| Max Pull Tension | |
| Operating Temperature | |
| Prop 65 | |
| Putup Type | |
| Ratings | |
| Voltage | |
| WEEE | |
| Wire Gauge |

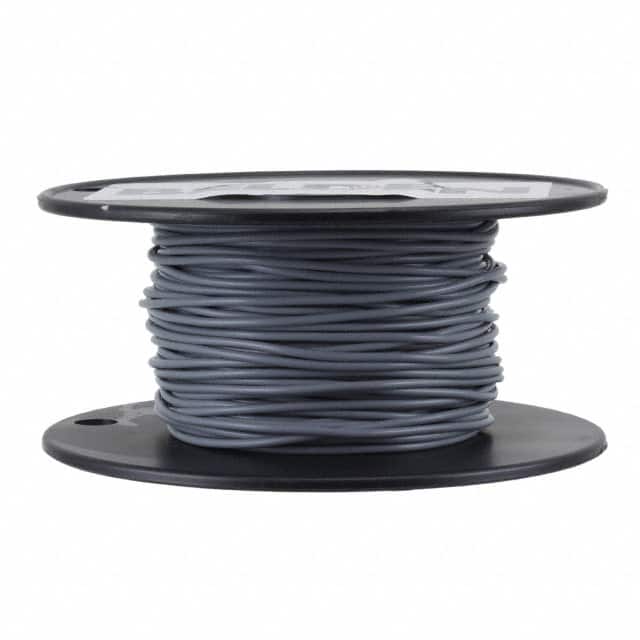

The Belden 9921 008100 is a single-conductor hook-up wire designed for internal wiring of electronic equipment and appliances. It features a 22 AWG stranded tinned copper conductor (7x30 stranding) for flexibility and reliable connections.
The wire is insulated with polyvinyl chloride (PVC) rated for 300V and a temperature range of -20°C to 105°C. The nominal insulation thickness is 0.016 inches (0.41 mm) with an overall jacket diameter of 0.062 inches (1.57 mm). The gray jacket provides easy identification in wiring harnesses.
This wire is UL Style 1007/1569 and CSA Type TR-64/TRSR-64 compliant, with a VW-1 flammability rating. It is suitable for use in inter-connection circuits, internal wiring of computers, and other electronic devices. The 100 ft reel put-up is convenient for prototyping and small production runs.
| Qty | Low | High |
|---|---|---|
| 1+ | $131.82 | $131.82 |
| 2+ | $125.42 | $125.42 |
| 3+ | $121.81 | $121.81 |
| 5+ | $117.38 | $117.38 |
| 7+ | $114.53 | $114.53 |
| 10+ | $111.58 | $111.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 300V RMS.
The operating temperature range is -20°C to 105°C.
Yes, it is RoHS3 compliant (EU Directive 2015/863/EU).
The conductor is 22 AWG stranded with 7 strands of 30 AWG (7x30).
The jacket color is gray.
The maximum current is 11 A for a single conductor in free air at 30°C.
The flammability rating is VW-1.
