| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Type | |
| China RoHS | |
| Conductor Material | |
| Conductor Strand | |
| Industrial Grade | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Prop 65 | |
| Ratings | |
| Tape & Reel | |
| Voltage | |
| WEEE | |
| Wire Gauge |

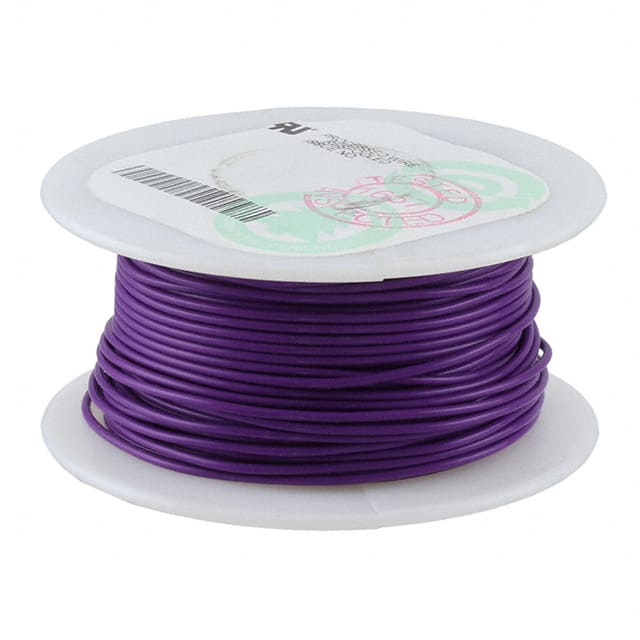

The Belden 9921 007100 is a single conductor hook-up wire designed for internal wiring of electronic equipment and appliances. It features a 22 AWG stranded tinned copper conductor (7x30 stranding) with a nominal DC resistance of 18.1 Ohm/1000ft. The PVC insulation provides a jacket diameter of 0.062 inches (1.57mm) and a thickness of 0.016 inches (0.41mm).
This wire is rated for 300V and operates over a temperature range of -20°C to 105°C. It carries UL Style 1007/1569 and AWM 1007/1569 compliance, with a VW-1 flammability rating. The violet jacket color aids in circuit identification.
Mechanical specifications include a minimum bend radius of 0.62 inches (16 mm) for both stationary and installation use, and a maximum pull tension of 9 lbs (4.1 kg). The bulk cable weight is 4 lbs/1000ft. The part is RoHS3, REACH, China RoHS, and WEEE compliant, and meets CA Prop 65 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $131.81 | $131.81 |
| 2+ | $125.42 | $125.42 |
| 3+ | $121.81 | $121.81 |
| 5+ | $117.38 | $117.38 |
| 7+ | $114.53 | $114.53 |
| 10+ | $111.58 | $111.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V RMS.
-20°C to 105°C.
22 AWG, 7x30 stranded tinned copper.
Poly-Vinyl Chloride (PVC), violet.
100 feet (30.5 meters).
Yes, RoHS3 compliant per EU Directive 2015/863/EU and 2011/65/EU.
VW-1.
