| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bulk Cable Weight | |
| Cable Type | |
| China RoHS | |
| Conductor DCR | |
| Conductor Material | |
| Conductor Strand | |
| Flammability Rating | |
| Insertion Loss (Nominal) | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Max Current (Single conductor in free air @ 30°C) | |
| Max Pull Tension | |
| Min Bend Radius (Installation) | |
| Min Bend Radius (Stationary) | |
| Operating Temperature | |
| Prop 65 | |
| Putup Length | |
| Putup Type | |
| Ratings | |
| Voltage | |
| WEEE | |
| Wire Gauge |

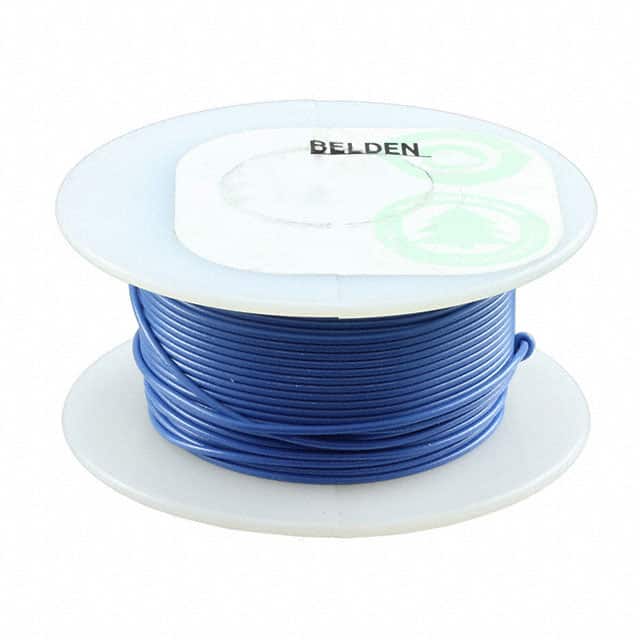

The Belden 9921 006100 is a single-conductor hook-up wire designed for internal wiring of electronic equipment and appliances. It features a 22 AWG stranded tinned copper conductor (7x30 stranding) with a polyvinyl chloride (PVC) jacket. The wire is rated for 300V and operates over a temperature range of -20°C to 105°C.
Key electrical characteristics include a nominal DC resistance of 18.1 Ohm/1000ft and a maximum current rating of 11 A for a single conductor in free air at 30°C. The nominal insertion loss is 6.2 dB/100m. The cable has a nominal jacket diameter of 0.062 inches (1.57 mm) and a jacket thickness of 0.016 inches (0.41 mm).
Mechanically, the wire has a minimum bend radius of 0.62 inches (16 mm) for both stationary and installation applications, and a maximum pull tension of 9 lbs (4.1 kg). The bulk cable weight is 4 lbs/1000ft. The wire is supplied on a 100 ft reel and is blue in color.
Compliance includes UL Style 1007/1569, VW-1 flammability rating, RoHS3, REACH unaffected, CA Prop 65, WEEE, and China RoHS II. It is suitable for indoor use in interconnection circuits and internal wiring of computers and electronic equipment.
| Qty | Low | High |
|---|---|---|
| 100+ | $1.29 | $1.29 |
| 200+ | $1.23 | $1.23 |
| 300+ | $1.19 | $1.19 |
| 500+ | $1.15 | $1.15 |
| 700+ | $1.12 | $1.12 |
| 1,000+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V RMS.
-20°C to 105°C.
Yes, it is RoHS3 compliant (EU Directive 2015/863/EU and 2011/65/EU).
22 AWG stranded tinned copper (7x30 stranding).
Polyvinyl chloride (PVC) insulation, blue.
100 ft (30.5 m).
VW-1.
