| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWM Compliance | |
| Bend Radius (Minimum @ Installation min) | |
| Bend Radius (Minimum @ Stationary min) | |
| Bulk Cable Weight | |
| CEC / C(UL) Compliance | |
| Cable Type | |
| China RoHS II | |
| Conductor DCR | |
| Conductor Material | |
| Conductor Strand | |
| Flammability / Reaction to Fire | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Max Current | |
| Max Pull Tension | |
| Operating Temperature | |
| Packaging Type | |
| Prop 65 | |
| Ratings | |
| Voltage | |
| WEEE | |
| Wire Gauge |

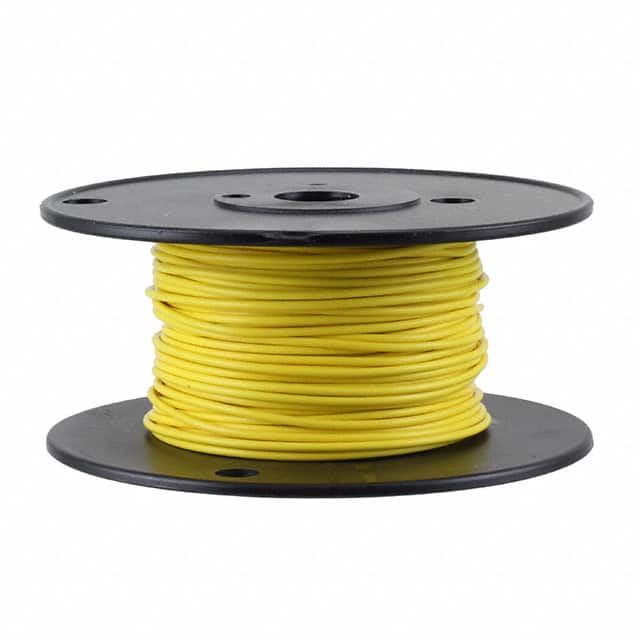

This Belden 9921 004100 hook-up wire is a 22 AWG single conductor cable with a 7x30 stranded tinned copper conductor and PVC insulation. It is supplied on a 100 ft reel with a yellow jacket.
Electrical specifications: rated for 300V RMS, maximum current of 11A (single conductor in free air at 30°C), and conductor DC resistance of 18.1 Ohm/1000ft. Operating temperature range is -20°C to 105°C.
Mechanical: insulation diameter 0.062 in (1.6 mm), thickness 0.017 in (0.43 mm). Minimum bend radius 0.62 in for both stationary and installation. Maximum pull tension 9 lbs. Cable weight 4 lbs/1000ft.
Compliance: UL Style 1007/1569, CSA TR-64/TRSR-64, VW-1 flammability, RoHS2, REACH unaffected, CA Prop 65, WEEE, China RoHS II. Suitable for internal wiring of electronic equipment and appliances.
| Qty | Low | High |
|---|---|---|
| 100+ | $1.29 | $1.29 |
| 200+ | $1.23 | $1.23 |
| 300+ | $1.19 | $1.19 |
| 500+ | $1.15 | $1.15 |
| 700+ | $1.12 | $1.12 |
| 1,000+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V RMS.
-20°C to 105°C.
Reel, 100 ft.
Yes, RoHS2 compliant (2011/65/EU).
22 AWG, tinned copper, 7/30 stranding.
11 A (single conductor in free air at 30°C).
UL Style 1007/1569, CSA TR-64/TRSR-64, VW-1 flammability.
