| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bend Radius (Installation) | |
| Bend Radius (Stationary) | |
| Cable Type | |
| Conductor DC Resistance | |
| Conductor Material | |
| Conductor Strand | |
| Flammability Rating | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Length | |
| Max Pull Tension | |
| Maximum Current | |
| Operating Temperature | |
| Prop 65 | |
| Putup Type | |
| Ratings | |
| Voltage | |
| Weight | |
| Wire Gauge |

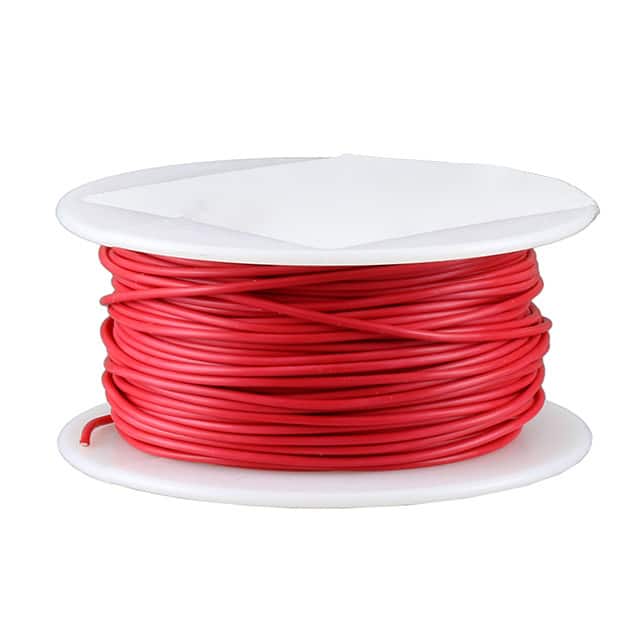

Belden 9921 002100 is a hook-up wire designed for internal wiring of electronic equipment, appliances, and interconnection circuits. The conductor is 22 AWG (7x30) stranded tinned copper, providing flexibility and corrosion resistance. The insulation is polyvinyl chloride (PVC) with a nominal thickness of 0.017 inches (0.43 mm), resulting in a jacket diameter of 0.062 inches (1.6 mm).
The wire is rated for 300V RMS and an operating temperature range of -20°C to 105°C. It has a nominal DC resistance of 18.1 Ω/1000ft and can carry up to 11 A (single conductor in free air at 30°C). The minimum bend radius is 16 mm for both stationary and installation conditions, and the maximum pull tension is 9 lbs (4.1 kg).
This part is supplied on a reel with a length of 100 ft (30.5 m). It is available in multiple colors; this variant has a red jacket. The wire meets UL Style 1007/1569 and CSA TR-64 standards, with VW-1 flammability rating. It is compliant with RoHS3 (EU Directive 2011/65/EU and amendment 2015/863/EU) and California Proposition 65.
| Qty | Low | High |
|---|---|---|
| 1+ | $131.81 | $131.81 |
| 2+ | $125.42 | $125.42 |
| 3+ | $121.81 | $121.81 |
| 5+ | $117.38 | $117.38 |
| 7+ | $114.53 | $114.53 |
| 10+ | $111.58 | $111.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V RMS.
-20°C to 105°C.
Reel, 100 ft.
Yes, RoHS3 compliant (EU Directive 2011/65/EU and amendment 2015/863/EU).
22 AWG, 7x30 stranded tinned copper.
Tinned copper.
VW-1.
