| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Coil Current | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Features | |
| Insulation Resistance | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

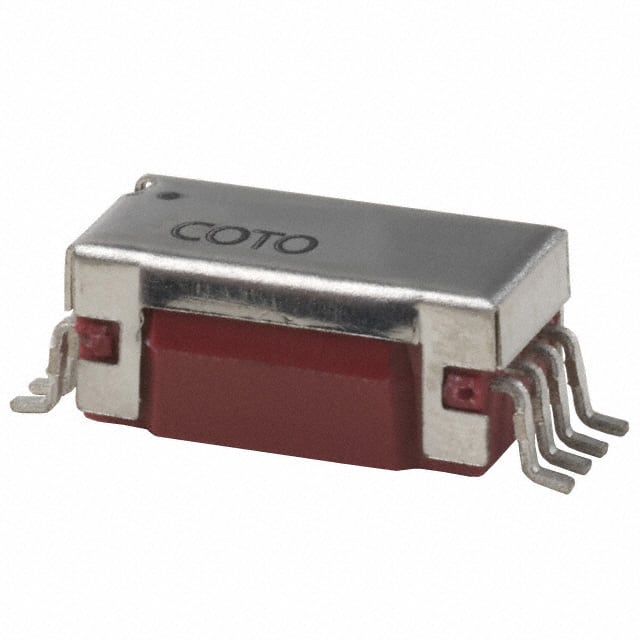

The Coto Technology 9852-05-00 is a miniature surface mount reed relay designed for high-frequency applications. It features a 5VDC coil and a non-latching coil type, with a contact form of SPDT (1 Form C). The relay is rated for a switching voltage of up to 30VDC and a contact current of 100mA.
This relay offers a bandwidth of 6.5 GHz, making it suitable for RF and pulse switching. It includes an external magnetic shield to reduce interaction between parts in high-density boards. The operating temperature range is -20°C to 85°C.
Designed for surface mounting with a gull wing termination style, the 9852-05-00 is ideal for automated test equipment, instrumentation, and telecommunications requirements. Its small size and high performance characteristics allow for high-density packing in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 5 VDC.
The contact rating is 100 mA.
The maximum switching voltage is 30 VDC.
The operating temperature range is -20°C to 85°C.
The bandwidth is 6.5 GHz for RF and pulse switching.
The contact form is SPDT (1 Form C).
