Mfr Part #:

98464-G61-40LF

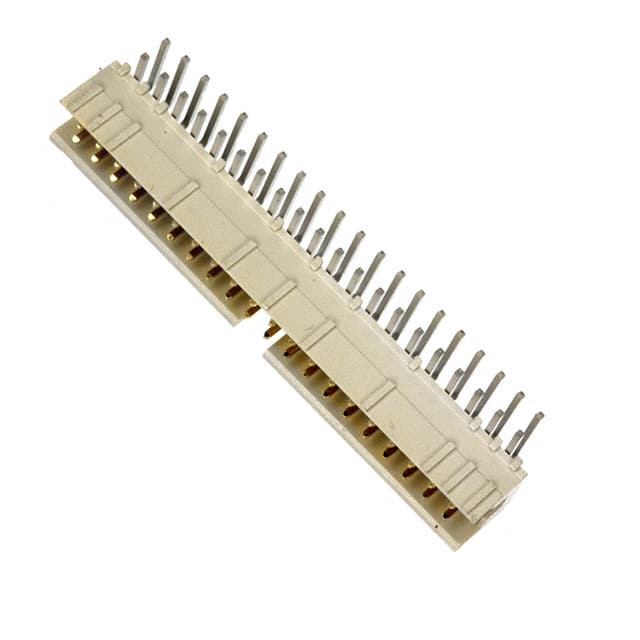

Amphenol ICC 98464-G61-40LF is a 40 position, 2 row, 2.00mm pitch right angle shrouded header with male pins, through hole solder termination, and tin plated copper alloy contacts.

✓ Total Stock: 187 pcs

$ Price Range: $5.34 - $8.70

98464-G61-40LF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	187 pcs On Request	187 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

98464-G61-40LF Description

Short technical summary and product information.

The Amphenol ICC 98464-G61-40LF is a 40-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.00mm pitch and 2.00mm row spacing, with a right-angle through-hole mounting style for compact PCB layouts. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating and a keying slot for polarization.

The contacts are made of copper alloy with a tin plating of 30.0µin (0.76µm) and have a square shape with a contact length of 4.00mm. The insulation is cream-colored thermoplastic rated UL94 V-0 for flammability. Electrical ratings are 2A (AC/DC) at 200V (AC/DC). This header is suitable for a wide range of interconnect applications requiring reliable, polarized connections.

98464-G61-40LF Quick Information

Product Type: Header, Male Pins

Canonical Name: Amphenol ICC 98464-G61-40LF 40 Position 2.00mm Pitch Right Angle Shrouded Header

Subcategory: Shrouded Header

98464-G61-40LF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

98464-G61-40LF Estimated Pricing

Qty	Low	High
1+	$8.70	$8.70
10+	$7.39	$7.39
100+	$6.28	$6.28
500+	$5.61	$5.61
1,000+	$5.34	$5.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

98464-G61-40LF Features

40 positions in 2 rows at 2.00mm pitch.
Right angle through hole solder termination.
Shrouded 4-wall design with latch holder.
Tin plated copper alloy contacts rated 2A.
UL94 V-0 rated cream thermoplastic insulator.

98464-G61-40LF Applications

Board-to-board interconnect in compact electronics.
Cable-to-board connections requiring polarization.
Industrial control and automation equipment.
Consumer electronics and peripheral devices.

98464-G61-40LF FAQs

5 frequently asked questions generated from this part’s specifications.

How many positions does the 98464-G61-40LF have?

40 positions, all loaded, in 2 rows.

What is the pitch of this header?

2.00mm (0.079") with 2.00mm row spacing.

What is the current and voltage rating?

Rated 2A (AC/DC) at 200V (AC/DC).

What mounting type does this header use?

Through hole, right angle with solder termination.

Is the header shrouded?

Yes, it is a 4-wall shrouded header with a latch holder and keying slot.

Category	Headers, Male Pins
Manufacturer Name	Amphenol ICC
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	4.00mm (0.157")
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2A (AC/DC)
Current Rating (Amps)	2A (AC/DC)
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Cream
Insulation Height	6.10mm (0.240")
Insulation Material	Thermoplastic
Lead Spacing	2.0 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	200V (AC/DC)
