| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

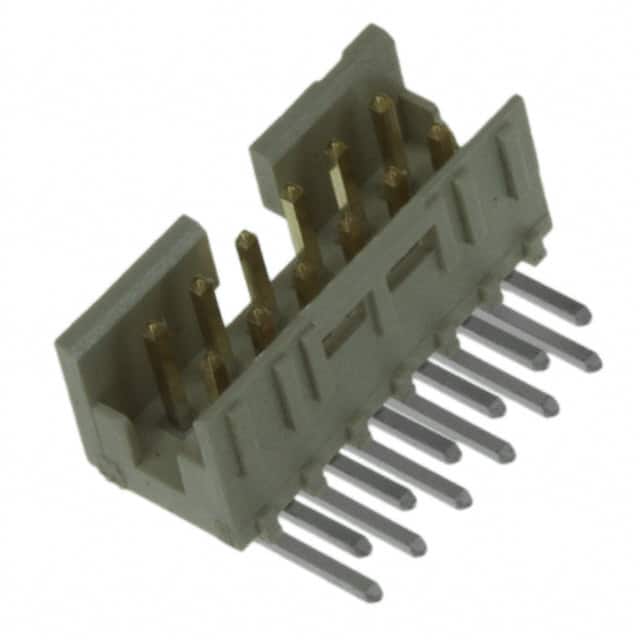

The Amphenol ICC 98464-G61-12LF is a 12 position rectangular header with male pin contacts arranged in 2 rows on a 2.00mm pitch. The connector features a right angle mounting orientation and a fully shrouded 4-wall design with latch holder fastening for secure mating.
This header supports board-to-board or cable style connections and includes a keying slot for alignment. Contacts are made from copper alloy with a tin finish (0.76µm thickness) and a square contact shape. The insulation is thermoplastic rated UL94 V-0, colored cream, with an insulation height of 6.10mm.
Electrical ratings are 2A (AC/DC) and 200V (AC/DC). All 12 positions are loaded. The header is through hole solder terminated, suitable for wave soldering processes.
This header has 12 positions arranged in 2 rows.
The pitch is 2.00mm between pins, with the same row spacing of 2.00mm.
The header is rated for 2A (AC/DC) and 200V (AC/DC).
It uses through hole mounting with a right angle orientation, terminated by soldering.
Yes, it is a fully shrouded 4-wall header with a latch holder fastening type.
The insulation is thermoplastic with a UL94 V-0 flammability rating.
The contacts are tin plated with a thickness of 0.76µm.
