| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

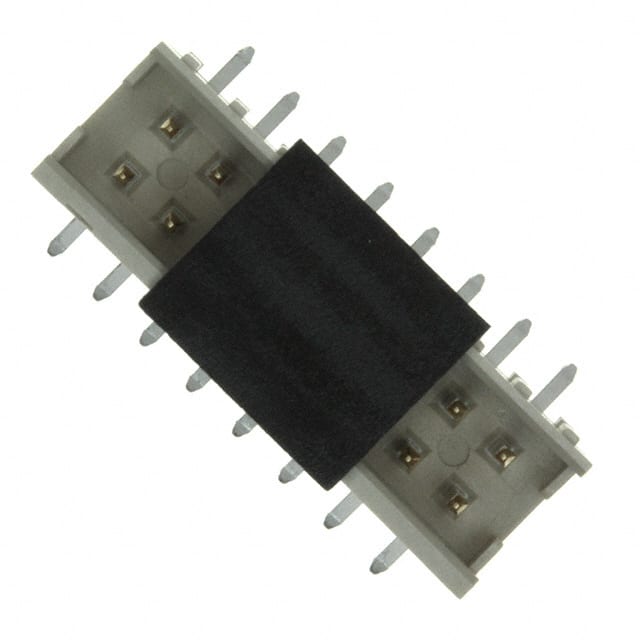

The Amphenol ICC 98424-G52-16ALF is a 16-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.00mm pitch and 2.00mm row spacing, with a surface mount termination style. The header is fully shrouded with a 4-wall design and includes a latch holder fastening system for secure mating. Contacts are made of copper alloy with a tin finish (0.76µm thickness) and have a square shape with a 4.00mm contact length. The insulation is cream-colored thermoplastic rated UL94 V-0, and the insulation height is 6.20mm. The part includes keying slot and pick-and-place features for automated assembly. It is rated for 2A (AC/DC) and 200V (AC/DC).
The pitch is 2.00mm.
It has 16 positions arranged in 2 rows.
The current rating is 2A (AC/DC).
The voltage rating is 200V (AC/DC).
Surface mount with solder termination.
Yes, it is a shrouded - 4 wall design with a latch holder fastening type.
The insulation is thermoplastic with a UL94 V-0 flammability rating.
