| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

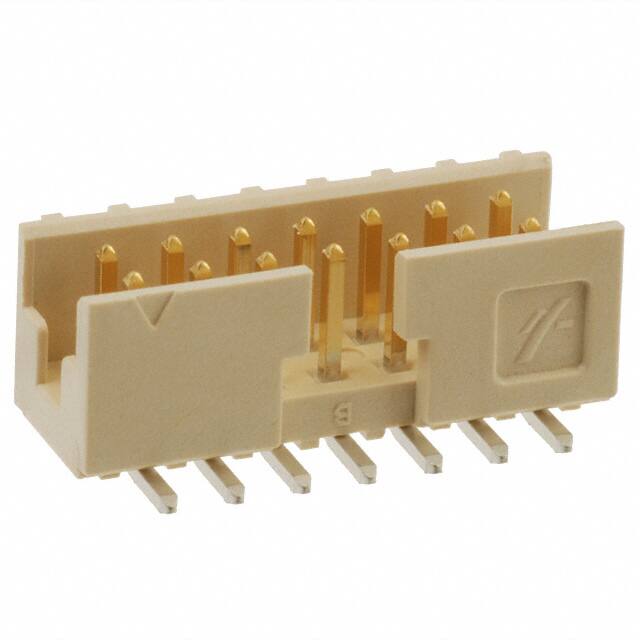

The Amphenol ICC 98424-G52-14ALF is a 14-position header with a 2mm pitch, suitable for board-to-board or cable applications. It features a surface mount termination style and a shrouded design with four walls for enhanced durability and polarization.
The header is constructed with a thermoplastic insulator in a cream color, rated UL94 V-0 for material flammability. The contact material is a copper alloy with a tin finish, and the contact shape is square. Key mechanical specifications include an insulation height of 6.20mm, contact length of 4.00mm, and a row spacing of 2.00mm.
Electrically, this header is rated for 2A (AC/DC) current and 200V (AC/DC) voltage. It includes features such as a keying slot and is designed for pick and place assembly. The fastening type is a latch holder, providing secure connection.
This component is designed for applications requiring reliable interconnects with specific mechanical and electrical characteristics. Its surface mount capability facilitates automated assembly processes.
The pitch of the 98424-G52-14ALF header is 2.00mm (0.079").
The 98424-G52-14ALF header has 14 positions.
The current rating for the 98424-G52-14ALF header is 2A (AC/DC).
The voltage rating of the 98424-G52-14ALF header is 200V (AC/DC).
The 98424-G52-14ALF header uses a Surface Mount mounting type.
The insulation material is Thermoplastic and it has a UL94 V-0 flammability rating.
The contact material is Copper Alloy with a Tin finish.
