| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

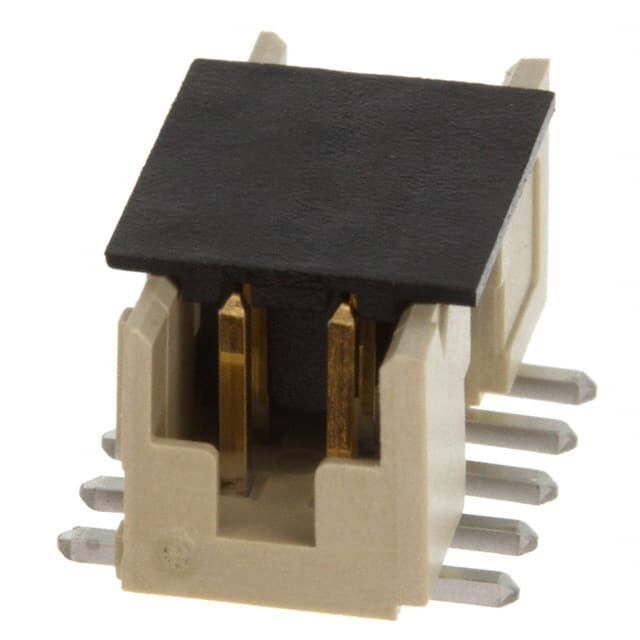

The Amphenol ICC 98424-G52-10ALF is a 10-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.00mm pitch with 2.00mm row spacing, enabling compact layouts. The header is surface mountable with solder termination. Contacts are made of copper alloy with tin plating (30.0µin) and have a square shape. The thermoplastic insulation is cream colored and rated UL94 V-0. Electrical ratings are 2A AC/DC per contact and 200V AC/DC. Additional features include a keying slot and pick-and-place capability for automated assembly. The latch holder fastening type ensures secure mating.
It has 10 positions, all loaded, in 2 rows.
The pitch is 2.00mm (0.079") with the same row spacing.
The current rating is 2A (AC/DC) per contact.
The voltage rating is 200V (AC/DC).
The mounting type is Surface Mount (SMD).
The contact finish is Tin with a thickness of 30.0µin (0.76µm).
It includes a keying slot and pick-and-place feature for automated assembly.
