| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
601 pcs
|
601 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (AC/DC) | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Voltage Rating (AC/DC) |

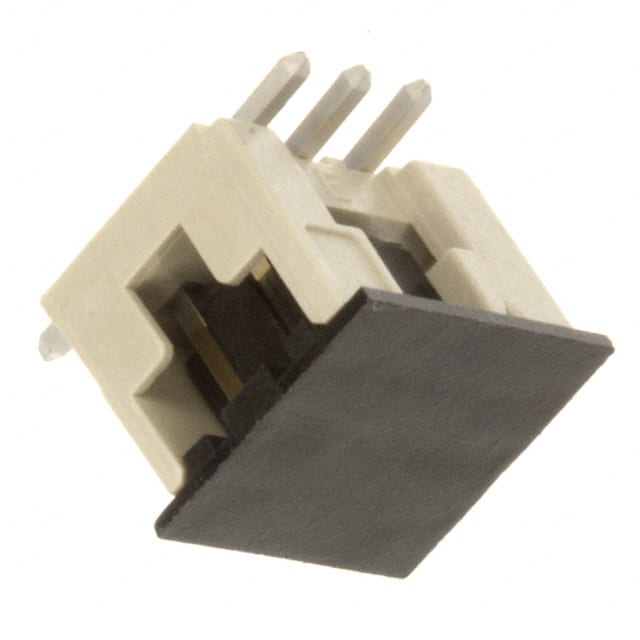

The Amphenol ICC 98424-G52-06ALF is a 6-position, 2-row shrouded header designed for board-to-board or cable-to-board connections. It features a 2.00mm (0.079") pitch and row spacing, with all 6 positions loaded with male pins. The connector is surface mount (SMT) with solder terminations, and the contact length is 4.00mm (0.157").
This header is fully shrouded with 4 walls and includes a latch holder for secure mating, as well as keying slot and pick-and-place features for automated assembly. The contacts are made of copper alloy with a tin finish (0.76µm thickness). The insulator is thermoplastic material colored cream, with a flammability rating of UL94 V-0.
Electrical ratings are 2A AC/DC current and 200V AC/DC voltage. The part is RoHS3 compliant (unverified), REACH unaffected (unverified), and has an MSL of 1 Unlimited. The contact shape is square. Cross-references include DigiKey part numbers 609-2994-2-ND, 609-2994-1-ND, and 609-2994-6-ND.
The header has 6 positions in a 2-row configuration, all positions loaded.
Both pitch and row spacing are 2.00mm (0.079 inches).
The current rating is 2A AC/DC and the voltage rating is 200V AC/DC.
Surface mount (SMD) with solder termination.
Yes, it is fully shrouded with 4 walls and includes a latch holder for secure fastening.
Contacts are copper alloy with a tin finish of 0.76µm (30.0µin) thickness.
