| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
193 pcs
|
193 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Shape | |
| Contact Type | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Maximum Operating Temperature | |
| Minimum Operating Temperature | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Standards/Approvals | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

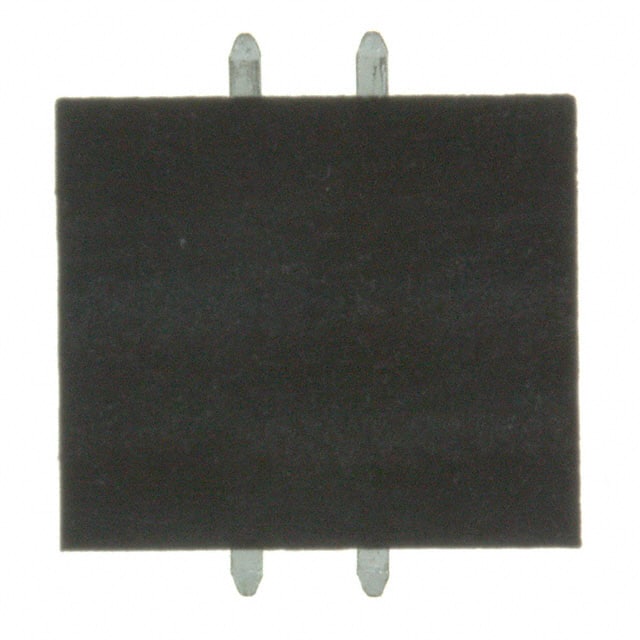

The Amphenol ICC 98424-G52-04ALF is a 4-position, 2-row, 2mm pitch shrouded header designed for surface mount applications. It features male square pins with tin contact finish (30.0µin) over copper alloy or phosphor bronze, housed in a cream thermoplastic insulator with UL94 V-0 flammability rating. The connector includes a latch holder fastening system and keying slot for secure mating, and is pick-and-place compatible.
Rated for 2A (AC/DC) and 200V (AC/DC), this header supports board-to-board or cable-to-board connections. It operates over a temperature range of -40°C to 125°C. The shrouded 4-wall design provides pin protection and alignment during mating.
The component is supplied in surface mount format with solder termination. It is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
The pitch is 2.00mm (0.079").
It has 4 positions arranged in 2 rows.
The current rating is 2A (AC/DC).
The voltage rating is 200V (AC/DC) per existing database, though the manufacturer page lists 650V.
It is a surface mount component with solder termination.
Yes, it is shrouded with a 4-wall design.
The operating temperature range is -40°C to 125°C.
