| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

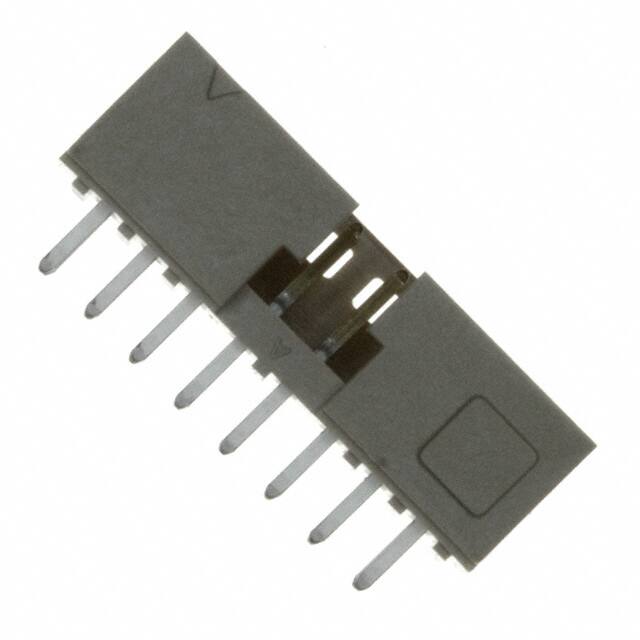

The Amphenol ICC 98414-G06-16ULF is a 16-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.00mm pitch and 2.00mm row spacing, with all 16 positions loaded. The header uses a through hole mounting style with solder termination, ensuring reliable mechanical and electrical connections.
This header is shrouded with a 4-wall design and includes a latch holder for secure fastening. The contacts are made of copper alloy with a tin finish of 30.0µin (0.76µm) thickness, offering good corrosion resistance and solderability. The contact length is 4.00mm, and the insulation is made of thermoplastic material colored cream, with a height of 5.90mm. The insulation material meets UL94 V-0 flammability rating.
Electrically, the header is rated for 2A (AC/DC) current and 200V (AC/DC) voltage. It features a keying slot for polarization, preventing mis-mating. The header is suitable for a variety of electronic assemblies requiring a compact interconnection solution. The part is cross-referenced as 609-3107-ND from Amphenol ICC.
16 positions, 2 rows, all loaded.
2.00mm (0.079") pitch with 2.00mm row spacing.
2A (AC/DC)
200V (AC/DC)
Through hole, solder termination.
Yes, shrouded with 4 walls.
Tin, 30.0µin (0.76µm) thickness.
