| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

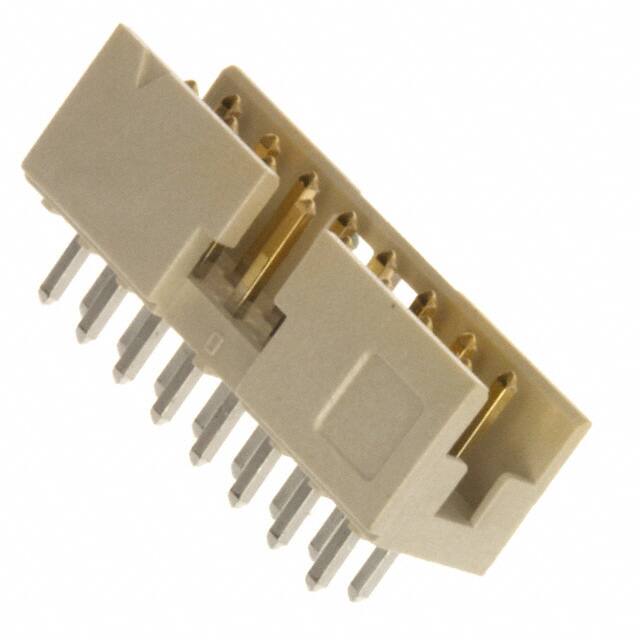

The Amphenol ICC 98414-G06-16LF is a 16-position, 2-row shrouded header with a 2.00mm pitch and 2.00mm row spacing. It features a 4-wall shrouded design with a latch holder fastening system and a keying slot for polarization. The header uses square male pin contacts made of copper alloy with a tin finish (30.0µin thickness).
The insulation is cream-colored thermoplastic rated UL94 V-0. The header is designed for board-to-board or cable applications and is rated for 2A (AC/DC) at 200V (AC/DC). Contact length is 4.00mm and insulation height is 5.90mm.
Mounting is through hole with solder termination. All 16 positions are loaded. The part is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity.
The header has 16 positions in 2 rows, all loaded.
The pitch is 2.00mm (0.079 inches) with a row spacing of 2.00mm.
The header is rated for 2A AC/DC and 200V AC/DC.
The header is through hole mounted with solder termination.
Yes, it is a shrouded header with 4-wall shrouding and a latch holder fastening system.
