| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

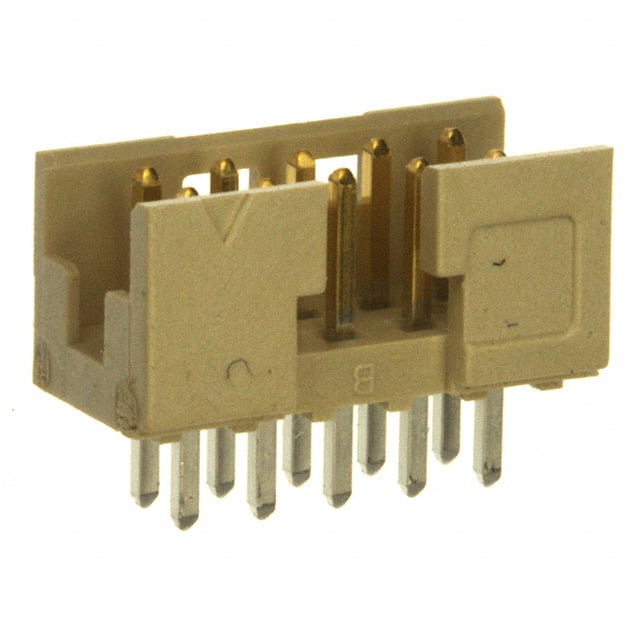

The Amphenol ICC 98414-G06-10ULF is a 10 position, 2-row, shrouded header connector designed for board-to-board or cable applications. It features a 2.00mm pitch and 2.00mm row spacing, with all positions loaded. The header uses square male pin contacts made of copper alloy with a tin finish (0.76µm thickness). The insulation is cream-colored thermoplastic rated UL94 V-0, with a height of 5.90mm. The connector includes a keying slot and a latch holder fastening type for secure mating. It is rated for 2A (AC/DC) at 200V (AC/DC).
The pitch is 2.00mm (0.079 inches).
It has 10 positions arranged in 2 rows.
The current rating is 2A (AC/DC).
The voltage rating is 200V (AC/DC).
It uses through hole mounting with solder termination.
