| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

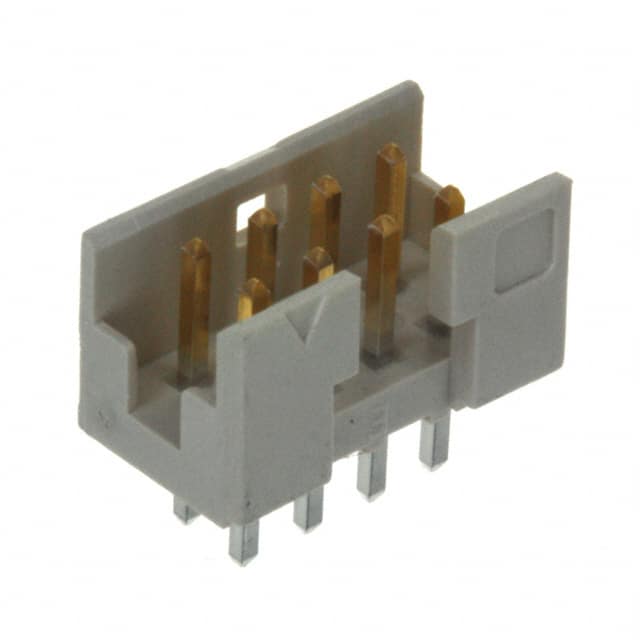

The 98414-G06-08ULF is a 8-position, 2-row header from Amphenol ICC with a 2.00mm pitch. It features male pin contacts made of copper alloy with a tin finish (30.0µin thickness). The connector is through-hole mounted with solder termination, ensuring reliable mechanical and electrical connections.
The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. The insulator is made of thermoplastic in cream color, with a flammability rating of UL94 V-0. A keying slot is provided for polarization.
Electrical ratings are 2A per contact (AC/DC) and 200V (AC/DC), making it suitable for low-power signal and power applications. The contact length is 4.00mm, and the insulation height is 5.90mm. This connector supports board-to-board or cable-to-board configurations.
The connector has 8 positions, all loaded, in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A (AC/DC) per contact.
The voltage rating is 200V (AC/DC).
The mounting type is through hole, with solder termination.
The contacts are copper alloy with a tin finish (30.0µin thickness).
The insulator is thermoplastic with a UL94 V-0 flammability rating.
