| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,033 pcs
|
1033 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

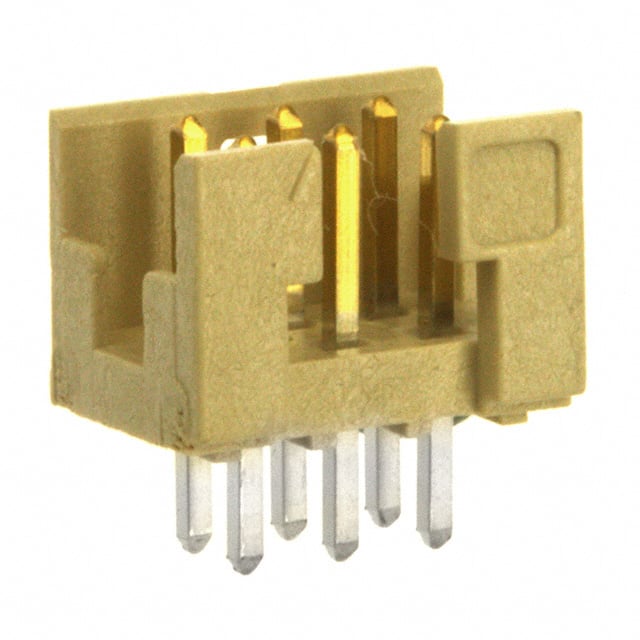

The 98414-G06-06ULF is a 6-position, 2-row shrouded header manufactured by Amphenol ICC. It features a 2.00mm pitch and row spacing, with all positions loaded. The connector uses male pin contacts made of copper alloy with a tin finish of 30.0µin (0.76µm). The square contact pins have a length of 4.00mm.
This header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. The insulation is made of thermoplastic material in cream color, with a height of 5.90mm. It is rated for UL94 V-0 flammability.
The connector supports board-to-board or cable connections and includes a keying slot for alignment. Electrical ratings are 2A (AC/DC) current and 200V (AC/DC) voltage. Mounting is through hole with solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.14 | $1.14 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.86 | $0.86 |
| 100+ | $0.83 | $0.83 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.79 | $0.79 |
| 1,120+ | $0.76 | $0.76 |
| 2,240+ | $0.66 | $0.66 |
| 5,600+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A (AC/DC).
The voltage rating is 200V (AC/DC).
Through hole mounting with solder termination.
The contacts have a tin finish with 30.0µin (0.76µm) thickness.
Yes, it is a fully shrouded 4-wall design with a latch holder.
