983-015-020R121 NorComp 983-015-020R121 is a two-piece D-Sub backshell for 15 positions with 180° cable exit, nickel over copper plating, and integral shielding. It accommodates round cables up to 11.43 mm diameter and includes a yoke and strain relief hardware.
Mfr Part #:

983-015-020R121

Available from 1 distributors
Mfr Name: NorComp Inc.
NorComp Inc.
NorComp 983-015-020R121 is a two-piece D-Sub backshell for 15 positions with 180° cable exit, nickel over copper plating, and integral shielding. It accommodates round cables up to 11.43 mm diameter and includes a yoke and strain relief hardware.
✓ Total Stock: 1 pcs

983-015-020R121 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

983-015-020R121 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Failure Rate
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

983-015-020R121 Description

Short technical summary and product information.

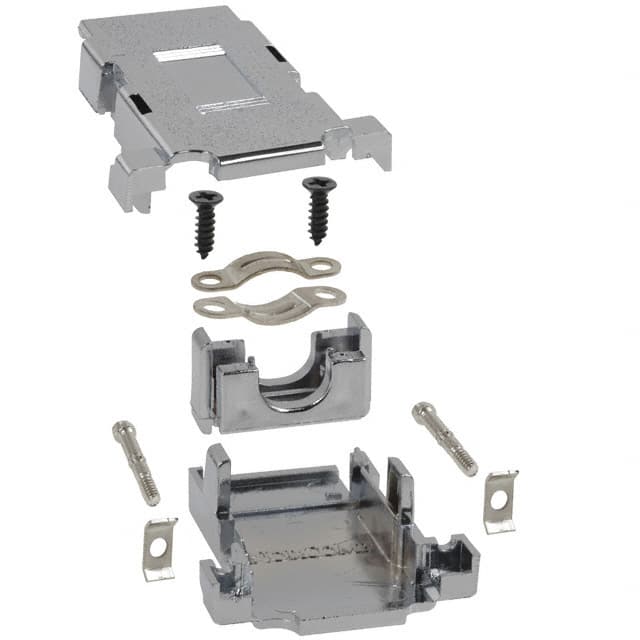

The NorComp 983-015-020R121 is a two-piece D-Sub backshell designed for 15-position D-Sub connectors. It features a 180° cable exit angle suitable for round cables with a maximum recommended diameter of 11.43 mm. The backshell is constructed from metallized plastic with a nickel over copper plating, providing effective EMI/RFI shielding.



The hardware includes a yoke, strain relief clamps, and mating screws (4-40), enabling secure cable termination and strain relief. The shell material is ABS, and the body material is thermoplastic rated UL 94V-0. The part is packaged in bulk and is part of NorComp's 983 series, which offers various position counts and material options.



This backshell is ideal for applications requiring robust cable management and shielding in industrial, data communication, and instrumentation environments. The integral yoke and strain relief design simplifies assembly and ensures reliable performance.

983-015-020R121 Quick Information

Product Type: D-Sub Backshell
Series: 983
Canonical Name: NorComp 983 Series 15-Position Two Piece Backshell, 180° Cable Exit, Shielded, Nickel over Copper Plating
Subcategory: Two Piece Backshell

983-015-020R121 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

983-015-020R121 Features

  • Two-piece backshell for 15-position D-Sub.
  • 180° cable exit for round cables.
  • Nickel over copper plating for shielding.
  • Includes yoke and strain relief hardware.
  • Bulk packaging from NorComp 983 series.

983-015-020R121 Applications

  • Use with 15-position D-Sub connectors.
  • Ideal for shielded cable assemblies.
  • Suitable for industrial control systems.
  • Common in data communication equipment.

983-015-020R121 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

The 983-015-020R121 supports 15 positions.

What is the cable exit angle?

The cable exit angle is 180°.

What type of cable is this backshell designed for?

It is designed for round cables.

Is the backshell shielded?

Yes, the backshell is shielded with nickel over copper plating.

What material is the backshell made of?

The backshell is metallized plastic, with a nickel over copper plating. The shell material is ABS and the body is thermoplastic.

What hardware is included with the backshell?

The backshell includes mating screws (4-40) and strain relief hardware.
