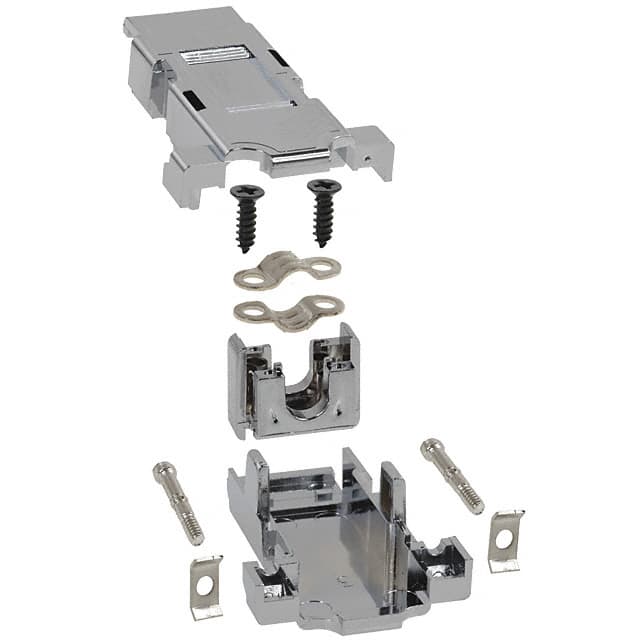

983-009-020R121 The 983-009-020R121 is a 9-position D-Sub backshell with 180° cable exit, shielded, made of metallized plastic with nickel over copper plating. It includes strain relief and mating screws.
Mfr Part #:

983-009-020R121

Available from 2 distributors
Mfr Name: NorComp Inc.
NorComp Inc.
The 983-009-020R121 is a 9-position D-Sub backshell with 180° cable exit, shielded, made of metallized plastic with nickel over copper plating. It includes strain relief and mating screws.
✓ Total Stock: 101 pcs

983-009-020R121 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

983-009-020R121 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

983-009-020R121 Description

Short technical summary and product information.

The 983-009-020R121 from NorComp is a 9-position D-Sub backshell designed for 180° cable exit. It features a shielded construction with metallized plastic material and nickel over copper plating, providing EMI protection. The backshell includes a yoke, strain relief clamps, saddle washers, and #4-40 mounting screws, making it a complete solution for cable termination. The housing is made of thermoplastic rated UL94V-0, available in black or gray, but this variant is silver (nickel over copper finish).



Dimensional specifications from the datasheet include: Dimension A 19.88 mm, Dimension B 24.99 mm, Dimension C 31.80 mm, Dimension D 49.00 mm, Dimension E 16.60 mm, Dimension F 6.80 mm, Dimension G 32.64 mm, Dimension H 13.87 mm, and Dimension J 44.13 mm. The kit includes hardware for secure mounting and strain relief.



This backshell is suitable for round cables and is designed to fit standard D-Sub connectors. It is commonly used in industrial, data communication, and other applications requiring reliable cable management and shielding. The 4-40 mating screws provide secure attachment to the connector. No additional hardware is required for basic installation.

983-009-020R121 Quick Information

Product Type: D-Sub Backshell
Series: 983
Canonical Name: D-Sub Backshell, 9 Position, 180° Cable Exit, Shielded, Metallized Plastic, Nickel over Copper
Subcategory: D-Sub Backshells, Hoods

983-009-020R121 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

983-009-020R121 Features

  • 9-position D-Sub backshell with 180° cable exit.
  • Shielded design with nickel over copper plating.
  • Metallized plastic construction, UL94V-0 rated.
  • Includes strain relief and mounting hardware.
  • Mating screws 4-40 included for secure attachment.

983-009-020R121 Applications

  • Suitable for shielding and strain relief of D-Sub connectors.
  • Ideal for industrial and data communication cabling.
  • Used in applications requiring EMI protection.
  • Compatible with round cable types.

983-009-020R121 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

This backshell supports 9 positions.

What is the cable exit angle?

The cable exit angle is 180°.

Is this backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

The backshell is made of metallized plastic with nickel over copper plating.

What hardware is included with the backshell?

The kit includes strain relief, yoke, two backshell halves, strain relief clamps, strain relief screws, saddle washers, and #4-40 mounting screws.

What is the color of this backshell?

The color is silver (nickel over copper finish).

What are the dimensions of this backshell for 9 positions?

Dimensions: A=19.88mm, B=24.99mm, C=31.80mm, D=49.00mm, E=16.60mm, F=6.80mm, G=32.64mm, H=13.87mm, J=44.13mm.
