| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
491 pcs
|
491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Washable |

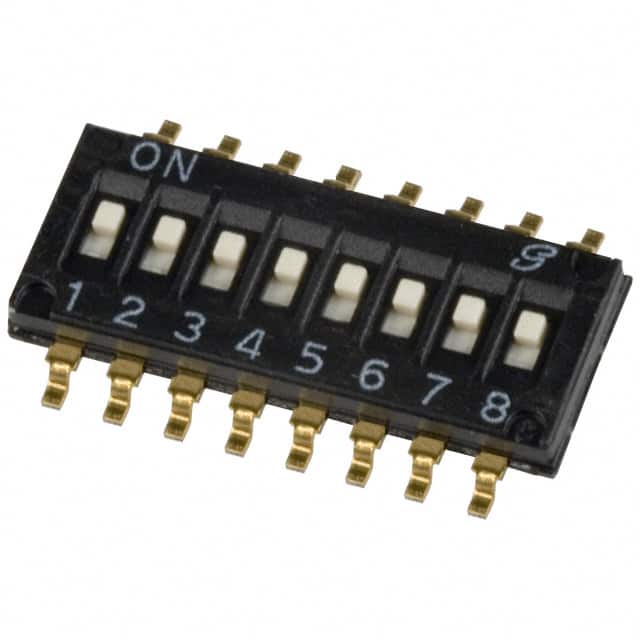

The Grayhill 97C08ST is a surface mount DIP switch from the 97 Series, featuring a half-pitch of 1.27mm (0.050"). This switch offers 8 positions with SPST circuitry, suitable for various electronic applications.
Key electrical specifications include a switch rating of 25mA at 24VDC, with copper alloy contacts finished in gold for reliable performance. The actuator type is a standard slide, with a recessed level for actuation. The mounting type is surface mount with a gull wing termination style.
Designed for operation in temperatures ranging from -40°C to 85°C, the 97C08ST has a mechanical life rating of 1,000 cycles. It is also specified as washable and features a tape seal for protection during handling and soldering processes. The height above the board is 1.60mm (0.063").
This component is RoHS3 compliant and has an MSL rating of 1. Its compact design and reliable switching capabilities make it suitable for a range of electronic assemblies where space and performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch rating is 25 mA at 24 VDC.
The 97C08ST has 8 positions.
It offers SPST (Single Pole Single Throw) circuitry.
The operating temperature range is -40°C to 85°C.
The pitch is 1.27mm (0.050 inches).
Yes, it is RoHS3 Compliant.
