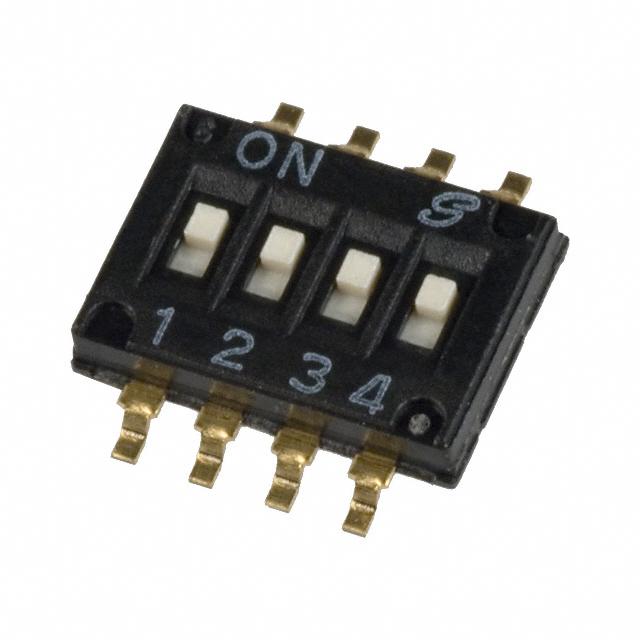

The Grayhill Inc. 97C04S is a compact DIP (Dual In-line Package) switch designed for electronic applications requiring manual configuration. This specific model features 4 positions and a Single Pole Single Throw (SPST) circuit, allowing for simple on/off control.
With an electrical rating of 25mA at 24VDC, it is suitable for low-power switching applications. The switch is designed for surface mounting, utilizing gull wing termination style for secure and reliable connections on printed circuit boards. Its compact dimensions and a height of 0.063" (1.60mm) above the board make it ideal for space-constrained designs.
The operating temperature range of -40°C to 85°C ensures reliable performance in various environmental conditions. The actuator level is flush and recessed, providing protection against accidental activation. The contact finish is gold, offering good conductivity and corrosion resistance. This series is known for its durability, with a mechanical life of 1,000 cycles.
Additional features include tape seal for protection against contaminants during soldering and cleaning processes. The pitch is 0.050" (1.27mm), and the body material is polyamide (PA), nylon, contributing to its robustness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Grayhill Inc. 97C04S DIP switch has 4 positions.
The 97C04S DIP switch features an SPST (Single Pole Single Throw) circuit.
The current rating for the Grayhill Inc. 97C04S is 25mA.
The voltage rating for the 97C04S DIP switch is 24VDC.
The operating temperature range for this DIP switch is -40°C to 85°C.
Yes, the Grayhill Inc. 97C04S is washable.
The 97C04S uses gull wing termination.
