| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

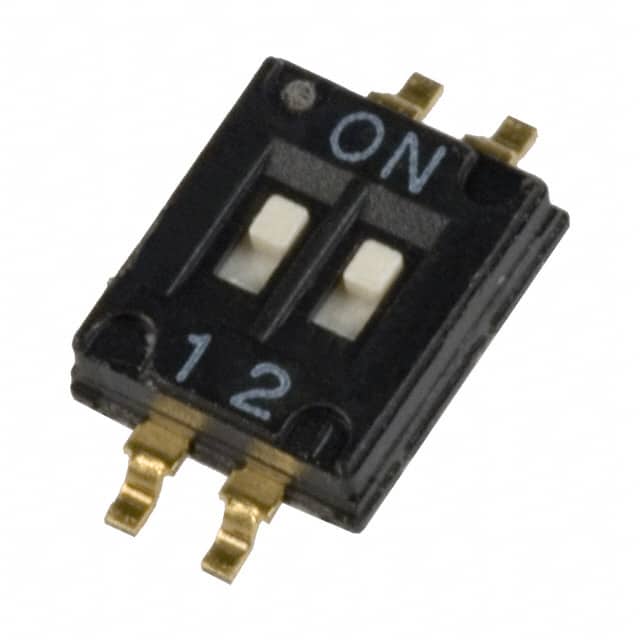

The Grayhill Inc. 97C02SR is a single-pole, single-throw (SPST) DIP switch featuring a slide actuator. It is designed for surface mount applications with a gull wing termination style.
This switch operates at a voltage rating of 24VDC and can handle a current of up to 25mA. It has a pitch of 1.27mm (0.050 inches) and a height above board of 1.60mm (0.063 inches). The operating temperature range is from -40°C to 85°C, and it is rated for 1,000 cycles of mechanical life.
The 97C02SR is washable and features a tape seal for protection. Its compact design and surface mount capability make it suitable for various electronic assemblies where space is a consideration. The gold contact finish ensures reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 97C02SR DIP switch has a voltage rating of 24VDC.
The 97C02SR switch has a current rating of 25mA.
The operating temperature range for the 97C02SR is -40°C to 85°C.
The 97C02SR DIP switch is designed for surface mounting.
The 97C02SR uses a gull wing termination style.
The 97C02SR is RoHS3 Compliant.
