| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,088 pcs
|
1088 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Carrier Tape Type | |
| Diameter | |
| Features | |
| Halogen Free | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Plating | |
| Screw, Thread Size | |
| Solder Cream Thickness | |
| Storage Conditions | |
| Tape & Reel | |
| Threaded | |
| Tightening Torque | |
| Type |

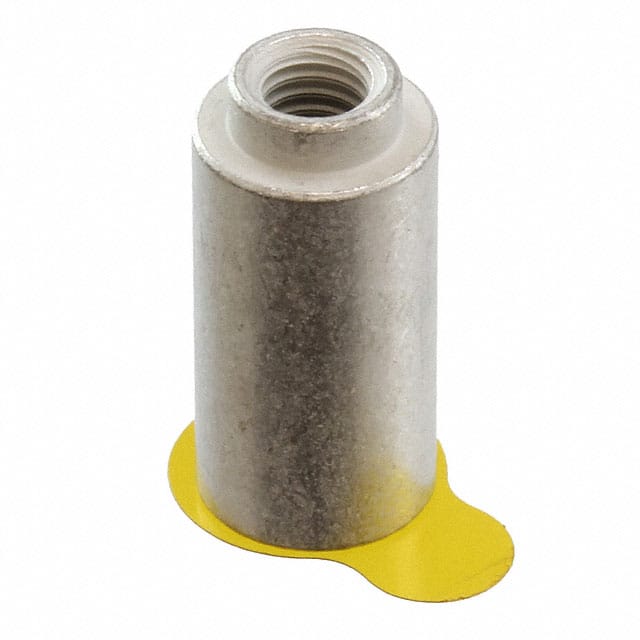

The 9774110360R is a round standoff from Würth Elektronik's WA-SMSI series, designed for surface mount applications. It features an M3x0.5 internal thread and is constructed from steel with a tin-plated finish. The standoff has a length of 11 mm and an outer diameter of 6.0 mm. It is rated for an operating temperature range of -55°C to +150°C. The part is packaged in tape and reel with a polyimide tape on top for automated assembly. Maximum tightening torque is 0.5 N·m. Solder cream thickness should be at least 150 µm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.75 | $1.75 |
| 10+ | $1.62 | $1.62 |
| 50+ | $1.50 | $1.50 |
| 100+ | $1.29 | $1.29 |
| 300+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
M3x0.5
11 mm
-55°C to +150°C
Yes, compliant with 2011/65/EU and 2015/863.
Surface mount.
Steel with tin plating.
