| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Diameter | |
| Features | |
| Halogen Free | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature Range | |
| Packaging Type | |
| Plating | |
| Screw, Thread Size | |
| Storage Temperature Range | |
| Tape & Reel | |
| Threaded | |
| Tightening Torque | |
| Type |

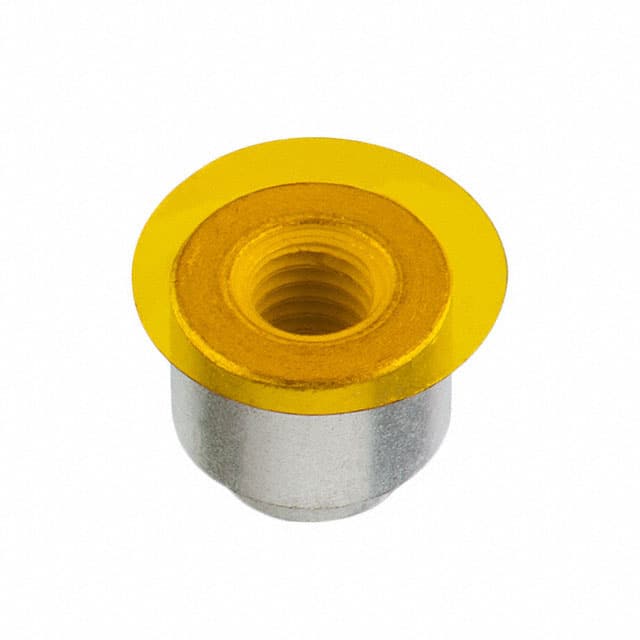

The 9774025151R is a round standoff from Würth Elektronik, part of the WA-SMSI series. It features an M2.5x0.45 internal thread and is constructed from steel with a tin-plated surface. The standoff provides a between-board height of 2.5mm and has an outer diameter of 5.1mm. It is designed for surface mount assembly and is supplied in tape and reel packaging, which includes a polyimide tape flap for automated pick-and-place processes.
Key mechanical specifications include a maximum tightening torque of 0.35 N·m. The operating temperature range is -55°C to +150°C, with storage conditions of 5°C to 40°C and up to 75% relative humidity. The moisture sensitivity level (MSL) is 1, indicating unlimited floor life.
The standoff is RoHS compliant (2011/65/EU & 2015/863), REACH conform, and halogen free per IEC 61249-2-21 and JEDEC JS709B. It is suitable for general electronic equipment where reliable spacing and mechanical support are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.21 | $1.21 |
| 50+ | $1.06 | $1.06 |
| 100+ | $0.98 | $0.98 |
| 500+ | $0.91 | $0.91 |
| 950+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to +150°C.
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
It is supplied in Tape & Reel packaging.
The thread size is M2.5x0.45.
It is made of steel with tin plating.
The maximum tightening torque is 0.35 N·m.
The MSL is Level 1 (unlimited floor life).
